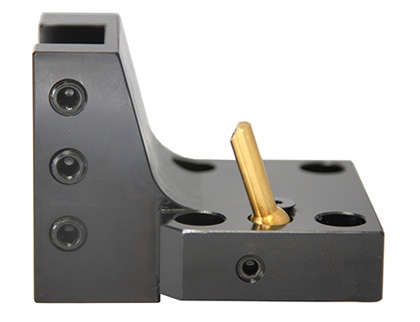

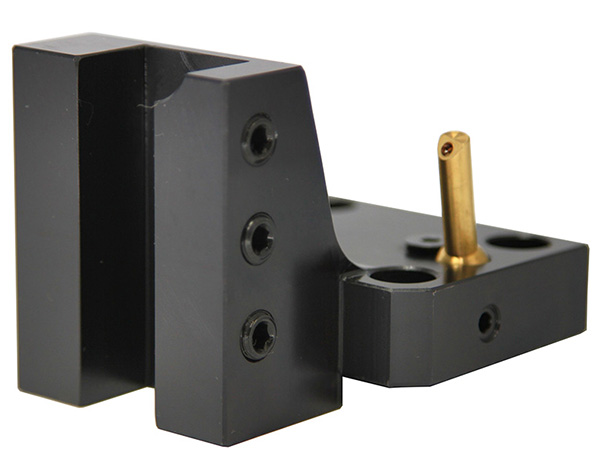

BMT BOLT PATTERN 69x71 CUT OFF HOLDER R=25 mm FOR NAKAMURA WT300 NAKAMURA WT300
THS006795
Compatible lathes
- NAKAMURA WT-300 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809,
- NAKAMURA SC-300L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, BEVEL GEAR,
- NAKAMURA SUPERMILL WY-250L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WT-150 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WY-250 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WT-150II TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
$ USD
56500
56500

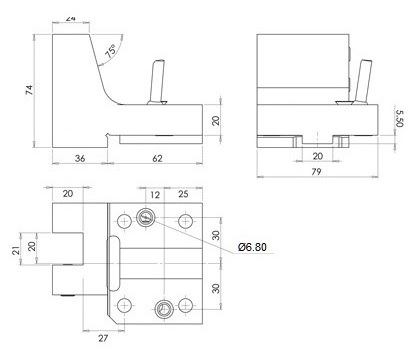

| SKU | X | A | B | C | G | NAKAMURA LATHE |
| THS007314 | 20 | 98 | 66 | 39.5 | 39.5 | NAKAMURA WT-100 |
| THS006793 | 20 | 98 | 86 | 39.5 | 39.5 | NAKAMURA NTJ-100 |
| THS007315 | 20 | 101 | 80 | 41.5 | 41.5 | NAKAMURA WT-150 |
| THS006794 | 20 | 99 | 80 | 48 | 48 | NAKAMURA WT-300 |
| THS007316 | 25 | 106 | 80 | 46.5 | 41.5 | NAKAMURA WT-150 |
| THS006795 | 25 | 135 | 93 | 48 | 48 | NAKAMURA WT-300 |
Updated 2022-02-23
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS006793 BMT44 BOLT PATTERN 40x55 CUT OFF HOLDER H=20 mm FOR NAKAMURA NTJ100 | ||||||
| STRIGHT | 20 mm |
STATIC STATIC |
STRIGHT | EXTERNAL COOLANT | STRIGHT | |
| THS006794 BMT BOLT PATTERN 69x71 CUT OFF HOLDER R=20 mm FOR NAKAMURA WT300 NAKAMURA SUPERMILL WT150 | ||||||
| STRIGHT |
STATIC STATIC |
STRIGHT | EXTERNAL COOLANT | STRIGHT | ||
| THS006795 BMT BOLT PATTERN 69x71 CUT OFF HOLDER R=25 mm FOR NAKAMURA WT300 NAKAMURA WT300 | ||||||
| STRIGHT |
STATIC STATIC |
STRIGHT | EXTERNAL COOLANT | STRIGHT | ||
| THS007314 BMT44 BOLT PATTERN 40x55 CUT OFF HOLDER H=20 mm LEFT HAND FOR NAKAMURA WT100 | ||||||
| STRIGHT | 20 mm |
STATIC STATIC |
LEFT HAND | EXTERNAL COOLANT | STRIGHT | |
| THS007315 BMT BOLT PATTERN 50x60 CUT OFF HOLDER R=20 mm FOR NAKAMURA WT150 EXT COOLANT | ||||||
| STRIGHT |
STATIC STATIC |
STRIGHT | EXTERNAL COOLANT | STRIGHT | ||
| THS007316 BMT BOLT PATTERN 50x60 CUT OFF HOLDER R=25 mm FOR NAKAMURA WT150 EXT COOLANT | ||||||
| STRIGHT |
STATIC STATIC |
STRIGHT | EXTERNAL COOLANT | STRIGHT | ||
Updated 202305
Tool holder machine interface: RADIAL (STAR TYPE) turret, BMT-BOLT PATTERN 69x71 NAKAMURA WT300, STATIC, ANY
COMPATIBLE LATHES
NAKAMURA WT-300 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, ; NAKAMURA SC-300L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, BEVEL GEAR, ; NAKAMURA SUPERMILL WY-250L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WT-150 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WY-250 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WT-150II TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS;
