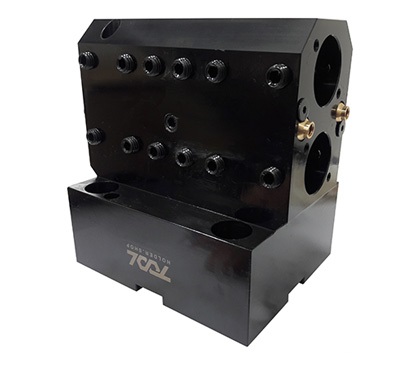

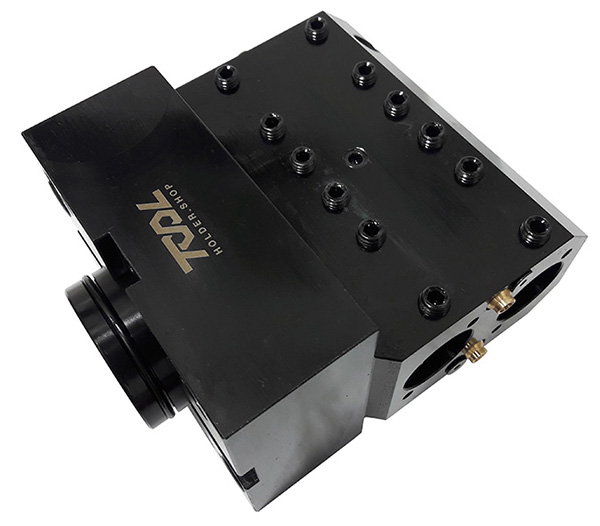

BMT40 BOLT PATTERN 62x70 BORING BAR HOLDER DOUBLE 2xID=20mm L=80 108 mm MORI NZ2000 NZ1500
THS009535
Compatible lathes
- MORI SEIKI DURATURN DT-2550MC TURRET DIA.40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809,
- MORI SEIKI NL-1500 20-TLS TURRET BMT40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809,
- MORI SEIKI NL-2000 20-TLS TURRET BMT40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809,
- MORI SEIKI NLX-1500 20-TLS TURRET BMT40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809,
- MORI SEIKI NLX-2500 TURRET BMT40 20 TOOL POSITIONS TURRET
- MORI SEIKI NLX-2000 20-TLS TURRET BMT40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809,
- MORI SEIKI NZ-2000 BMT40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ANY
- MORI SEIKI NZ-2000CC BMT40 20 TOOLS TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ANY
- MORI SEIKI NZ-1500 BMT40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ANY
- GANESH ASL-8M TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ANY
- MORI SEIKI NL-2500 TURRET BMT40 20 TOOLS TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ANY
77300

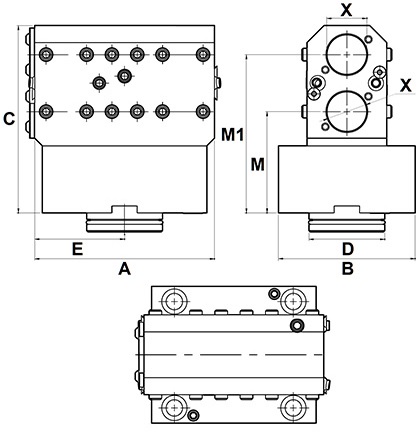

| SKU | D | A | B | C | E | M | M1 | ID | MORI SEIKI LATHE |
| THS003869 | 60 | 130 | 108 | 155 | 65 | 95 | 125 | 1-1/2" | MORI SEIKI NL1500 MORI SEIKI NL2000 MORI SEIKI NL2500 MORI SEIKI NL3000 TAKISAWA TS3000 TAKISAWA TS4000 TAKISAWA TS5000 |
| THS003952 | 60 | 142 | 108 | 148 | 71 | 80 | 125 | 1-1/4" | |
| THS009535 | 40 | 142 | 108 | 148 | 71 | 80 | 125 | 20 | MORI SEIKI NZ1500 MORI SEIKI NZ2000 |
| THS007237 | 60 | 142 | 108 | 148 | 71 | 80 | 125 | 32 | MORI SEIKI NL1500 MORI SEIKI NL2000 MORI SEIKI NL2500 MORI SEIKI NL3000 TAKISAWA TS3000 TAKISAWA TS4000 TAKISAWA TS5000 |
Updated 11.05.2022
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS003869 BMT60 BOLT PATTERN 84x94 BORING BAR HOLDER DOUBLE ID=( 1- 1/ 2)" L=125 mm IC MORI NL1500 | ||||||
| STRAIGHT | ( 1- 1/ 2)" | 125 mm |
STATIC STATIC |
STRAIGHT | INTERNAL COOLANT THROUGH | STRAIGHT |
| THS003952 BMT60 BOLT PATTERN 84x94 BORING BAR HOLDER DOUBLE ID=( 1- 1/ 4)" L=125 mm FOR MORI NL1500 | ||||||
| STRAIGHT | ( 1- 1/ 4)" | 125 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS007237 BMT60 BOLT PATTERN 84x94 BORING BAR HOLDER DOUBLE 2xID= 32 mm L=125 mm FOR MORI NL1500 | ||||||
| STRAIGHT | 32 mm | 125 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS009535 BMT40 BOLT PATTERN 62x70 BORING BAR HOLDER DOUBLE 2xID=20mm L=80 108 mm MORI NZ2000 NZ1500 | ||||||
| STRAIGHT | TAPER B12 | 80 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
Updated 202309
Tool holder machine interface: RADIAL (STAR TYPE) turret, BMT-BOLT PATTERN 62x70 MORI SEIKI BMT40, STATIC, ANY
COMPATIBLE LATHES
MORI SEIKI DURATURN DT-2550MC TURRET DIA.40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ; MORI SEIKI NL-1500 20-TLS TURRET BMT40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ; MORI SEIKI NL-2000 20-TLS TURRET BMT40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ; MORI SEIKI NLX-1500 20-TLS TURRET BMT40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ; MORI SEIKI NLX-2500 TURRET BMT40 20 TOOL POSITIONS TURRET ; MORI SEIKI NLX-2000 20-TLS TURRET BMT40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ; MORI SEIKI NZ-2000 BMT40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ANY; MORI SEIKI NZ-2000CC BMT40 20 TOOLS TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ANY; MORI SEIKI NZ-1500 BMT40 TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ANY; GANESH ASL-8M TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ANY; MORI SEIKI NL-2500 TURRET BMT40 20 TOOLS TURRET RADIAL (STAR TYPE), BMT 40, DIN1809, ANY;
