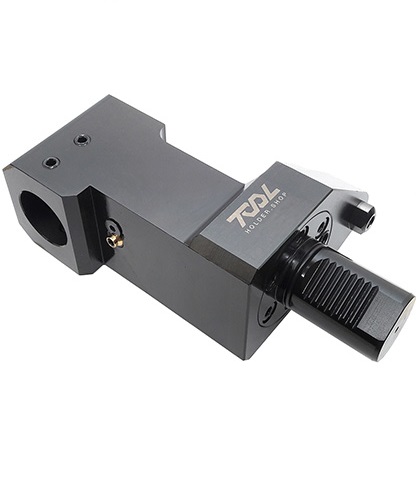

VDI40 MAZAK U DRILL HOLDER ID=(1-1/4)" L=110 mm FOR MAZAK QTN100M QTN150M SQT10M SQT15AM
THS013592
Compatible lathes
- MAZAK SUPER QUICK TURN SQT-10MS-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-10M-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-15MS-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-200MS-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-15M-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-200M-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-250M-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-10M TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI 40, STATIC, ANY
- MAZAK QUICK TURN NEXUS QTN-150M TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-15AM DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, STATIC, ANY
- MAZAK QUICK TURN NEXUS QTN-100M TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-250MS-16D RADIAL TURRET DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),

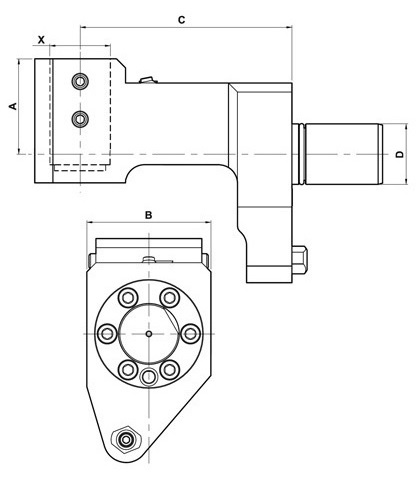

| SKU | Ø D | X | A | B | C | MAZAK LATHE |
| THS013591 | 40 | 32 | 48 | 76 | 110 | MAZAK QTN100M MAZAK QTN150M MAZAK SQT10M MAZAK SQT15AM |
| THS013592 | 1-1/4" | |||||
| THS013554 | 40 | 40 | 63 | 82 | 140 | MAZAK QTN200M MAZAK QTN250M MAZAK SQT15M MAZAK SQT18M |
| THS005173 | 1-1/2" | |||||
| THS013593 | 50 | 40 | 62 | 94 | 175 | MAZAK SQT28M MAZAK SQT30M |
| THS003694 | 1-1/2" | |||||
| THS013594 | 50 | 50 | 62 | 94 | 175 | MAZAK SQT28M MAZAK SQT30M |
| THS000768 | 2" |
Updated 2022-02-23
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS000768 VDI50 MAZAK U DRILL HOLDER ID=( 2)" L=175 mm FOR MAZAK SQT28M SQT30M MAZAK 53308010201 | ||||||
| ANGLE 90 DEGREE | ( 2)" | 175 mm |
STATIC STATIC |
STRIGHT | INTERNAL COOLANT THROUGH | STRIGHT |
| THS003694 VDI50 MAZAK U DRILL HOLDER ID=( 1- 1/ 2)" L=175 mm FOR MAZAK SQT28M SQT30M | ||||||
| ANGLE 90 DEGREE | ( 1- 1/ 2)" | 175 mm |
STATIC STATIC |
STRIGHT | INTERNAL COOLANT THROUGH | STRIGHT |
| THS005173 VDI40 MAZAK U DRILL HOLDER ID=(1-1/2)" L=140 mm FOR MAZAK QTN200M QTN250M SQT15M SQT18M | ||||||
| ANGLE 90 DEGREE | TAPER B12 | 140 mm |
STATIC STATIC |
STRIGHT | INTERNAL COOLANT THROUGH | STRIGHT |
| THS013554 VDI40 MAZAK U DRILL HOLDER ID= 40 mm L=140 mm FOR MAZAK QTN200M QTN250M SQT15M SQT18MS | ||||||
| ANGLE 90 DEGREE | 40 mm | 140 mm |
STATIC STATIC |
STRIGHT | INTERNAL COOLANT THROUGH | STRIGHT |
| THS013591 VDI40 MAZAK U DRILL HOLDER ID= 32 mm L=110 mm FOR MAZAK QTN100M QTN150M SQT10M SQT15AM | ||||||
| ANGLE 90 DEGREE | 32 mm | 110 mm |
STATIC STATIC |
STRIGHT | INTERNAL COOLANT THROUGH | STRIGHT |
| THS013592 VDI40 MAZAK U DRILL HOLDER ID=(1-1/4)" L=110 mm FOR MAZAK QTN100M QTN150M SQT10M SQT15AM | ||||||
| ANGLE 90 DEGREE | TAPER B12 | 110 mm |
STATIC STATIC |
STRIGHT | INTERNAL COOLANT THROUGH | STRIGHT |
| THS013593 VDI50 MAZAK U DRILL HOLDER ID= 40 mm L=175 mm FOR MAZAK SQT28M SQT30M MAZAK 53308000500 | ||||||
| ANGLE 90 DEGREE | 40 mm | 175 mm |
STATIC STATIC |
STRIGHT | INTERNAL COOLANT THROUGH | STRIGHT |
| THS013594 VDI50 MAZAK U DRILL HOLDER ID= 50 mm L=175 mm FOR MAZAK SQT28M SQT30M | ||||||
| ANGLE 90 DEGREE | 50 mm | 175 mm |
STATIC STATIC |
STRIGHT | INTERNAL COOLANT THROUGH | STRIGHT |
| THS016706 VDI40 MAZAK U DRILL HOLDER ID=(1-1/4)" L=140 mm FOR MAZAK QTN200M QTN250M SQT15M SQT18M | ||||||
| ANGLE 90 DEGREE | TAPER B12 | 140 mm |
STATIC STATIC |
STRIGHT | INTERNAL COOLANT THROUGH | STRIGHT |
Updated 202305
Tool holder machine interface: RADIAL (STAR TYPE) turret, MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68-40, STATIC, ANY
COMPATIBLE LATHES
MAZAK SUPER QUICK TURN SQT-10MS-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT), ; MAZAK SUPER QUICK TURN SQT-10M-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT), ; MAZAK SUPER QUICK TURN SQT-15MS-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT), ; MAZAK SUPER QUICK TURN SQT-200MS-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT), ; MAZAK SUPER QUICK TURN SQT-15M-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT), ; MAZAK SUPER QUICK TURN SQT-200M-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT), ; MAZAK SUPER QUICK TURN SQT-250M-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT), ; MAZAK SUPER QUICK TURN SQT-10M TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI 40, STATIC, ANY; MAZAK QUICK TURN NEXUS QTN-150M TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT), ; MAZAK SUPER QUICK TURN SQT-15AM DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, STATIC, ANY; MAZAK QUICK TURN NEXUS QTN-100M TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT), ; MAZAK SUPER QUICK TURN SQT-250MS-16D RADIAL TURRET DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT), ;
