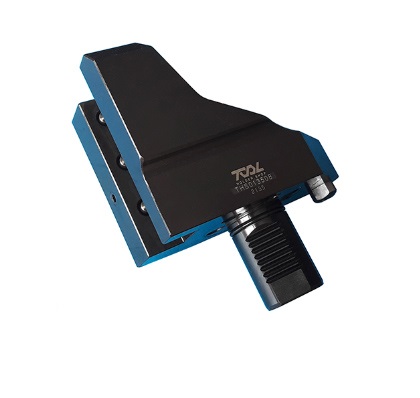

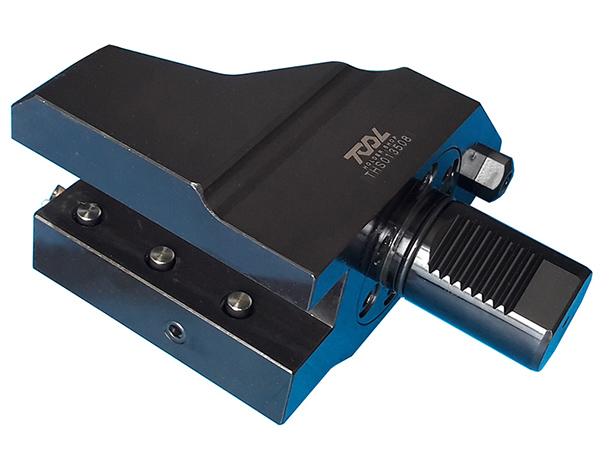

VDI40 TURNING HOLDER H=20 mm LEFT HAND FOR MAZAK QTN100M QTN150M SQT10M SQT15AM
THS013499
Compatible lathes
- MAZAK SUPER QUICK TURN SQT-10MS-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK QUICK TURN NEXUS QTNX-100II-M TURRET RADIAL DIA.40 TURRET
- MAZAK SUPER QUICK TURN SQT-10M-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-15MS-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-200MS-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-15M-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-200M-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-250M-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-10M TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI 40, STATIC, ANY
- MAZAK QUICK TURN NEXUS QTN-150M TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-15AM DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, STATIC, ANY
- MAZAK QUICK TURN NEXUS QTN-100M TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-250MS-16D RADIAL TURRET DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
96800

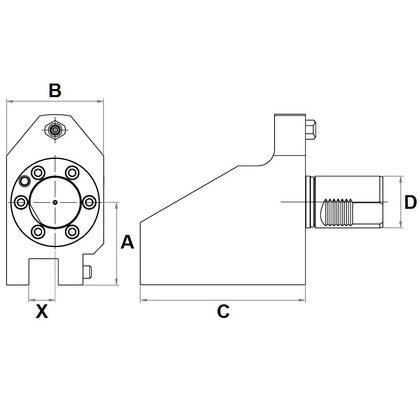

| SKU | D | UNITS | X | A | B | C | MAZAK LATHE |
| THS013499 | 40 | mm | 20 | 66 | 76 | 100 | MAZAK QTN 100M MAZAK QTN 150M MAZAK SQT 10M MAZAK SQT 15AM |
| THS013500 | inch | 0.75" | 2.6" | 3" | 3.937" | ||
| THS013501 | 40 | mm | 25 | 78 | 92 | 120 | MAZAK QTN 200M MAZAK QTN 250M MAZAK SQT 15M MAZAK SQT 18M |
| THS013508 | inch | 1" | 3.071" | 3.622" | 4.724" | ||
| THS013509 | 50 | mm | 25 | 80 | 94 | 160 | MAZAK SQT 28M MAZAK SQT 30M |
| THS013510 OEM EWS 1.5025.4SQT28 |
inch | 1" | 3.25" | 3.7" | 6.299" |
Updated 2022-02-23
| SKU | Interface | Direction | Capacity | Projection | Rotation | Hand | Coolant | Offset | |
| THS013499 | VDI40 TURNING HOLDER H=20 mm LEFT HAND FOR MAZAK QTN100M QTN150M SQT10M SQT15AM | ||||||||
|
MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40 STATIC |
|
||||||||
| THS013500 | VDI40 TURNING HOLDER H=(3/4)" LEFT HAND FOR MAZAK QTN100M QTN150M SQT10M SQT15AM | ||||||||
|
MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40 STATIC |
|
||||||||
| THS013501 | VDI40 TURNING HOLDER H=25 mm LEFT HAND FOR MAZAK QTN200M QTN250M SQT18M MAZAK 53618010600 | ||||||||
|
MAZAK SQT15 MAZAK SQT18 MAZAK SQT200 MAZAK SQT250 12 TOOLS MAZAK QTN200 MAZAK QTN250 PIN70 40 STATIC |
|
||||||||
| THS013508 | VDI40 TURNING HOLDER H=(1)" LEFT HAND FOR MAZAK QTN250M SQT15M SQT18M MAZAK 53618010600 | ||||||||
|
MAZAK SQT15 MAZAK SQT18 MAZAK SQT200 MAZAK SQT250 12 TOOLS MAZAK QTN200 MAZAK QTN250 PIN70 40 STATIC |
|
||||||||
| THS013509 | VDI50 TURNING HOLDER H=25 mm LEFT HAND FOR MAZAK SQT28M SQT30M | ||||||||
|
MAZAK SQT28 MAZAK SQT30 MAZAK QTNX300 MAZAK QTNX350 MAZAK QTNX450 50 MAZAK SQT28 (REGULAR) |
|
||||||||
| THS013510 | VDI50 TURNING HOLDER H=(1)" LEFT HAND FOR MAZAK SQT28M SQT30M | ||||||||
|
MAZAK SQT28 MAZAK SQT30 MAZAK QTNX300 MAZAK QTNX350 MAZAK QTNX450 50 MAZAK SQT28 (REGULAR) |
|
||||||||
Updated 202301
Tool holder machine interface: RADIAL (STAR TYPE) turret, MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68-40, STATIC, NO
