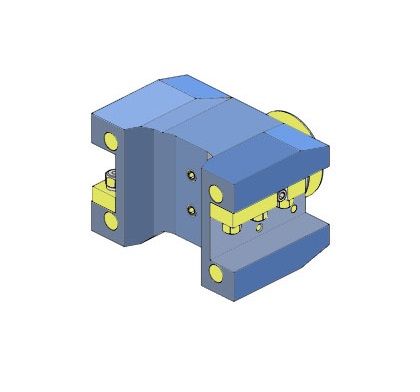

BMT68 BOLT PATTERN 68x110 DOUBLE TURNING HOLDER H=25 mm L=100 mm FOR MAZAK QTS200M
THS004829
Compatible lathes
- MAZAK QUICK TURN SMART QTS-100M TURRET RADIAL (STAR TYPE), BMT BOLT PATTERN 68x110 BMT68, DIN1809,
- MAZAK QUICK TURN SMART QTS-200M RADIAL TURRET DIA.68 TURRET
- MAZAK QUICK TURN SMART QTS-250M TURRET BMT68 TURRET
- MAZAK QUICK TURN QT-200 16 TOOLS D68 TURRET RADIAL (STAR TYPE), BMT BOLT PATTERN 68x110 BMT68, DIN1809, ANY
- HESSAPP DVT-250 TURRET BMT68 DIN5482 TURRET RADIAL (STAR TYPE), BMT 68, DIN5482,
- MAZAK QUICK TURN QTC-100M TURRET
- MAZAK QUICK TURN QTC-100MSY TURRET
- MAZAK QUICK TURN QT-100MS TURRET
- MAZAK QUICK TURN QT-100M TURRET
- MAZAK QUICK TURN QT-100MSY TURRET
- MAZAK QTU-200MS TURRET RADIAL (STAR TYPE), BMT 68, DIN1809, ANY
121200

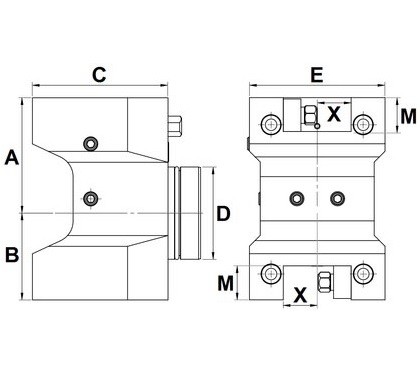

| SKU | D | X | A | B | C | E | M | MAZAK LATHE |
| THS004829 | Ø 68 | 25 | 85 | 64 | 100 | 100 | 25 | MAZAK QTS 200M |
| THS004830 | 1" | 3.347" | 2.519" | 3.937" | 3.937" | 1" |
Updated 2022-02-23
| SKU | Interface | Direction | Capacity | Projection | Rotation | Hand | Coolant | Offset | |
| THS004829 | BMT68 BOLT PATTERN 68x110 DOUBLE TURNING HOLDER H=25 mm L=100 mm FOR MAZAK QTS200M | ||||||||
|
BMT 68 STATIC |
|
||||||||
| THS004830 | BMT68 BOLT PATTERN 68x110 DOUBLE TURNING HOLDER H=(1)" L=100 mm FOR MAZAK QTS200M | ||||||||
|
BMT 68 STATIC |
|
||||||||
Updated 202301
Tool holder machine interface: RADIAL (STAR TYPE) turret, BMT-68, STATIC, ANY
COMPATIBLE LATHES
MAZAK QUICK TURN SMART QTS-100M TURRET RADIAL (STAR TYPE), BMT BOLT PATTERN 68x110 BMT68, DIN1809, ; MAZAK QUICK TURN SMART QTS-200M RADIAL TURRET DIA.68 TURRET ; MAZAK QUICK TURN SMART QTS-250M TURRET BMT68 TURRET ; MAZAK QUICK TURN QT-200 16 TOOLS D68 TURRET RADIAL (STAR TYPE), BMT BOLT PATTERN 68x110 BMT68, DIN1809, ANY; HESSAPP DVT-250 TURRET BMT68 DIN5482 TURRET RADIAL (STAR TYPE), BMT 68, DIN5482, ; MAZAK QUICK TURN QTC-100M TURRET ; MAZAK QUICK TURN QTC-100MSY TURRET ; MAZAK QUICK TURN QT-100MS TURRET ; MAZAK QUICK TURN QT-100M TURRET ; MAZAK QUICK TURN QT-100MSY TURRET ; MAZAK QTU-200MS TURRET RADIAL (STAR TYPE), BMT 68, DIN1809, ANY;
