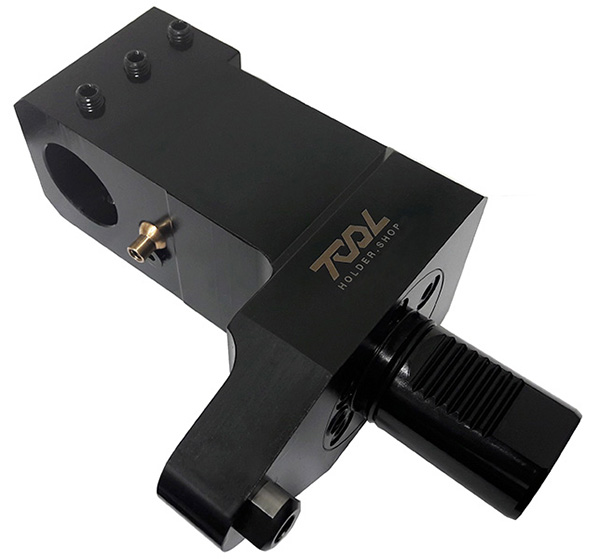

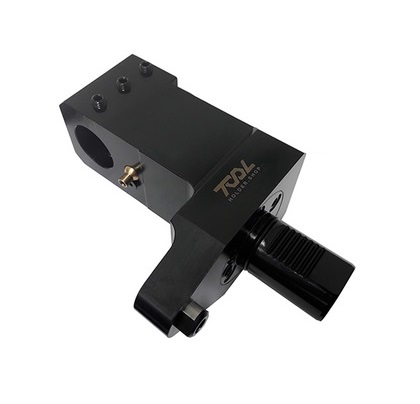

MAZAK VDI40 MP410/MP610 RADIAL BORING BAR HOLDER ID=25 mm L=120 mm
THS004119
Compatible lathes
- MAZAK MULTIPLEX MP-615N-12D TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN16x68 OFFSET MP410N 415N 610 610N 615N 12 TOOLS TURRET 6200 16 TOOL 40, MAZAK MP610 (FLUSH),
- MAZAK MULTIPLEX MP-6200-16D TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN16x68 OFFSET MP410N 415N 610 610N 615N 12 TOOLS TURRET 6200 16 TOOL 40, MAZAK MP610 (FLUSH),
- MAZAK MULTIPLEX MP-410-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN16x68 OFFSET MP410N 415N 610 610N 615N 12 TOOLS TURRET 6200 16 TOOL 40, MAZAK MP610 (FLUSH),
- MAZAK QUICK TURN NEXUS QTN-200M-12D TURRET DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN16x68 OFFSET MP410N 415N 610 610N 615N 12 TOOLS TURRET 6200 16 TOOL 40, MAZAK MP610 (FLUSH), ANY
- MAZAK MULTIPLEX MP-410N-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN16x68 OFFSET MP410N 415N 610 610N 615N 12 TOOLS TURRET 6200 16 TOOL 40, MAZAK MP610 (FLUSH),
- MAZAK MULTIPLEX MP-415N-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN16x68 OFFSET MP410N 415N 610 610N 615N 12 TOOLS TURRET 6200 16 TOOL 40, MAZAK MP610 (FLUSH),
- MAZAK MULTIPLEX MP-610-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN16x68 OFFSET MP410N 415N 610 610N 615N 12 TOOLS TURRET 6200 16 TOOL 40, MAZAK MP610 (FLUSH),
- MAZAK MULTIPLEX MP-6200Y-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN16x68 OFFSET MP410N 415N 610 610N 615N 12 TOOLS TURRET 6200 16 TOOL 40, MAZAK MP610 (FLUSH),
- MAZAK MULTIPLEX MP-610N-12D TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN16x68 OFFSET MP410N 415N 610 610N 615N 12 TOOLS TURRET 6200 16 TOOL 40, MAZAK MP610 (FLUSH),
- MAZAK MULTIPLEX MP-615 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN16x68 OFFSET MP410N 415N 610 610N 615N 12 TOOLS TURRET 6200 16 TOOL 40, MAZAK MP610 (FLUSH),
- MAZAK MULTIPLEX MP-410N TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN16x68 OFFSET MP410N 415N 610 610N 615N 12 TOOLS TURRET 6200 16 TOOL 40, MAZAK MP610 (FLUSH), ANY
- MAZAK MULTIPLEX MP-415N TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN16x68 OFFSET MP410N 415N 610 610N 615N 12 TOOLS TURRET 6200 16 TOOL 40, MAZAK MP610 (FLUSH), ANY
- MAZAK HQR-100 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN16x68 OFFSET MP410N 415N 610 610N 615N 12 TOOLS TURRET 6200 16 TOOL 40, STATIC, ANY
$ USD
94800
94800

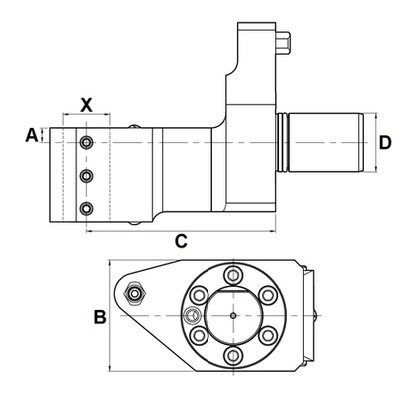

| SKU | Ø D | X | A | B | C | MAZAK LATHE |
| THS004119 | 40 | 25 | 5 | 76 | 120 | MAZAK MP610N MAZAK MP410N |
| THS004604 | 1" | |||||
| THS003926 | 32 | 10 | 76 | 120 | ||
| THS003927 | 1-1/4" | |||||
| THS004603 | 40 | 25 | 10 | 76 | 130 | MAZAK MP615N MAZAK MP415N |
| THS004604 | 1" | |||||
| THS004605 | 32 | 10 | 76 | 130 | ||
| THS004606 | 1-1/4" | |||||
| THS004596 | 40 | 25 | 5 | 82 | 140 | MAZAK MP620N MAZAK MP420N |
| THS004597 | 1" | |||||
| THS004122 | 40 | 10 | 82 | 140 | ||
| THS004121 | 1-1/2" |
Updated 2020.8.11:12:44
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS003926 MAZAK VDI40 RADIAL BORING BAR HOLDER ID=32 mm L=120 mm FOR MAZAK MP410 MAZAK MP610 | ||||||
| ANGLE 90 DEGREE | 32 mm | 120 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS003927 MAZAK VDI40 RADIAL BORING BAR HOLDER ID=( 1- 1/ 4)" L=120 mm FOR MAZAK MP410 MAZAK MP610 | ||||||
| ANGLE 90 DEGREE | ( 1- 1/ 4)" | 120 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS004119 MAZAK VDI40 MP410/MP610 RADIAL BORING BAR HOLDER ID=25 mm L=120 mm | ||||||
| ANGLE 90 DEGREE | 25 mm | 120 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS004120 MAZAK VDI40 RADIAL BORING BAR HOLDER ID=( 1)" L=120 mm MAZAK MP410 MAZAK MP610 MAZAK MP620 | ||||||
| ANGLE 90 DEGREE | ( 1)" | 120 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS004121 VDI40 RADIAL BORING BAR HOLDER ID=( 1- 1/ 2)" L=140 mm FOR MAZAK MP420 MP620 | ||||||
| ANGLE 90 DEGREE | ( 1- 1/ 2)" | 140 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS004122 VDI40 MAZAK RADIAL BORING BAR HOLDER ID=40 mm L=140 mm FOR MAZAK MP420 MAZAK MP620 | ||||||
| ANGLE 90 DEGREE | 40 mm | 140 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS004596 VDI40 RADIAL BORING BAR HOLDER ID=25 mm L=140 mm FOR MAZAK MP420 MP620 | ||||||
| ANGLE 90 DEGREE | 25 mm | 140 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS004597 VDI40 RADIAL BORING BAR HOLDER ID=( 1)" L=140 mm FOR MAZAK MP420 MP620 | ||||||
| ANGLE 90 DEGREE | ( 1)" | 140 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS004603 VDI40 RADIAL BORING BAR HOLDER ID=25 mm L=130 mm FOR MAZAK MP 615N | ||||||
| ANGLE 90 DEGREE | 25 mm | 130 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS004604 VDI40 RADIAL BORING BAR HOLDER ID=( 1)" L=130 mm FOR MAZAK MP615N | ||||||
| ANGLE 90 DEGREE | ( 1)" | 130 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS004605 VDI40 RADIAL BORING BAR HOLDER ID=32 mm L=130 mm FOR MAZAK MP615N | ||||||
| ANGLE 90 DEGREE | 32 mm | 130 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS004606 VDI40 RADIAL BORING BAR HOLDER ID=( 1- 1/ 4)" L=130 mm FOR MAZAK MP 615N | ||||||
| ANGLE 90 DEGREE | ( 1- 1/ 4)" | 130 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
Updated 202505.11
Tool holder machine interface: ANY turret, MAZAK VDI40 0 DEG PIN16x68 OFFSET MP410N 415N 610 610N 615N 12 TOOLS TURRET 6200 16 TOOL-40, STATIC, ANY
