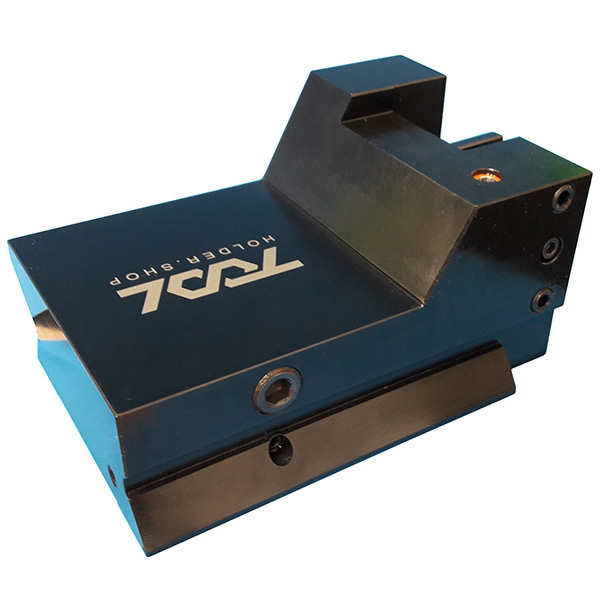

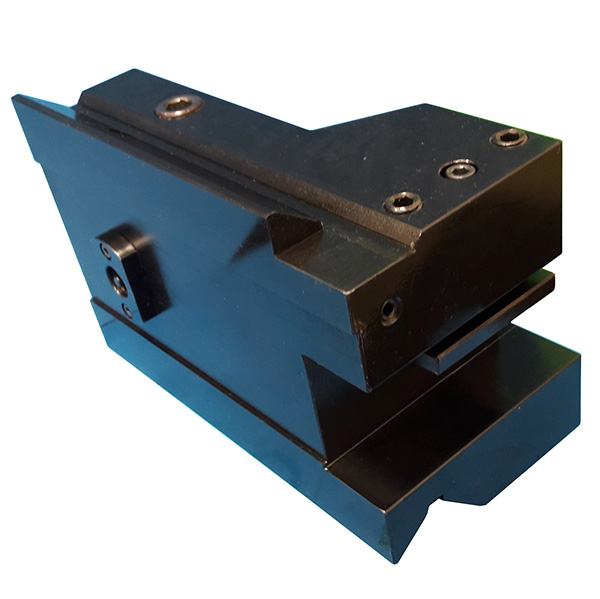

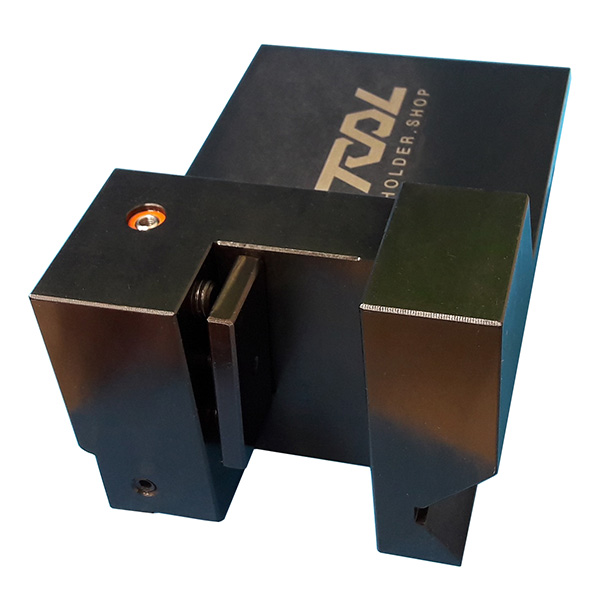

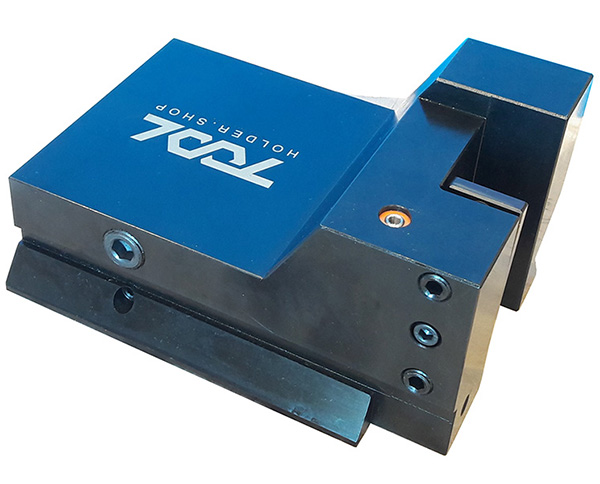

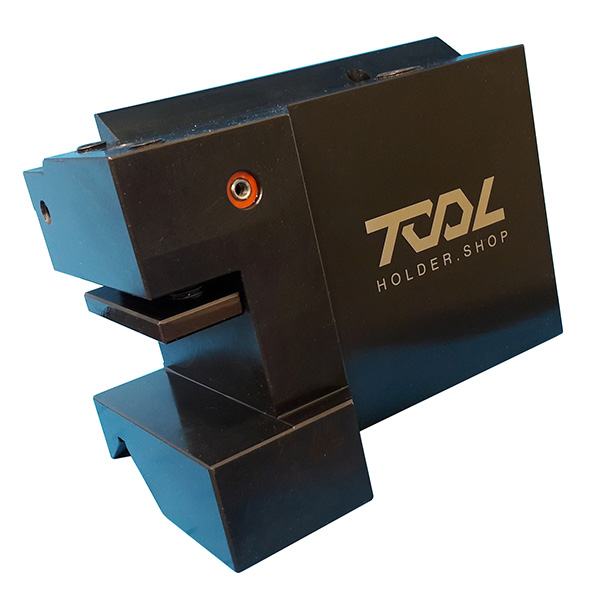

DOVETAIL 90 mm FORM A1 TURNING HOLDER H=25 mm L=73 mm
THS000526
$ USD
65600
65600

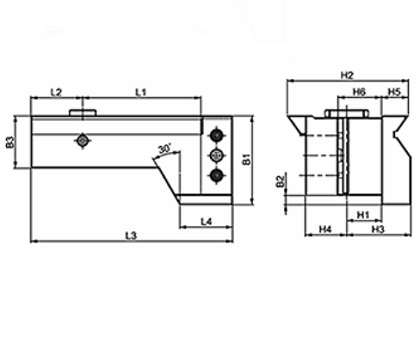

| SKU | H2 | H1 | B1 | B2 | B3 | H3 | H4 | H5 | H6 | L1 | L2 | L3 | L4 |
| THS000524 | 56 | 16 | 50 | 6 | 32 | 40 | 19 | 12 | 22 | 49 | 31 | 94 | 34 |
| THS000525 | 72 | 20 | 63 | 6 | 40 | 43 | 27 | 16 | 29 | 49 | 39 | 110 | 45 |
| THS000526 | 90 | 25 | 72 | 9 | 40 | 50 | 35.5 | 20 | 34 | 73 | 39 | 138 | 45 |
| THS000522 | 115 | 32 | 85 | 9 | 50 | 60 | 40 | 25.5 | 41 | 112 | 49 | 191 | 50 |
| THS000523 | 140 | 40 | 110 | 12 | 60 | 78 | 57.5 | 30 | 53 | 115 | 59 | 209 | 55 |
Updated 2020.8.11:12:44
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS000522 DOVETAIL 115 mm FORM A1 TURNING HOLDER H=32 mm L=112 mm | ||||||
| STRAIGHT | 32 mm | 112 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS000523 DOVETAIL 140 mm FORM A1 TURNING HOLDER H=40 mm L=115 mm | ||||||
| STRAIGHT | 40 mm | 115 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS000524 DOVETAIL 56 mm FORM A1 TURNING HOLDER H=16 mm L=49 mm | ||||||
| STRAIGHT | 16 mm | 49 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS000525 DOVETAIL 72 mm FORM A1 TURNING HOLDER H=20 mm L=49 mm | ||||||
| STRAIGHT | 20 mm | 49 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS000526 DOVETAIL 90 mm FORM A1 TURNING HOLDER H=25 mm L=73 mm | ||||||
| STRAIGHT | 25 mm | 73 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
Updated 202505.11
