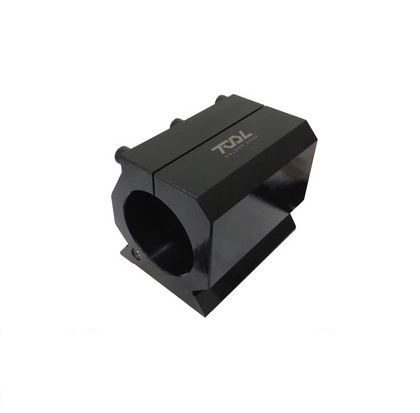

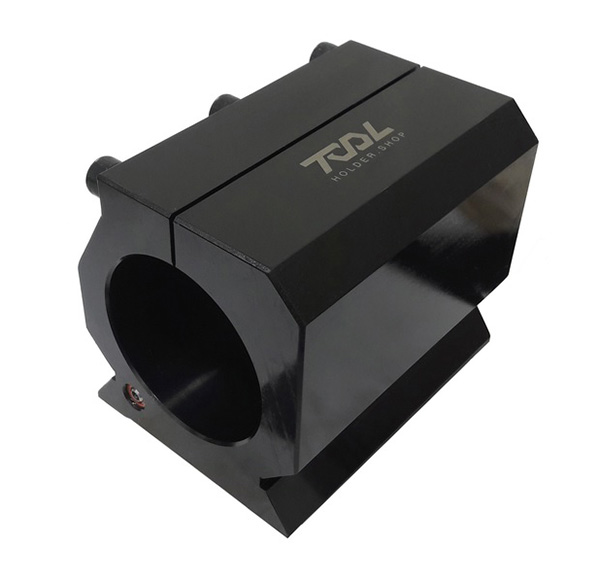

DOVETAIL 72 mm FORM D1 BORING BAR HOLDER ID=40 mm L=35 mm SPLIT LEFT
THS007203
$ USD
72900
72900

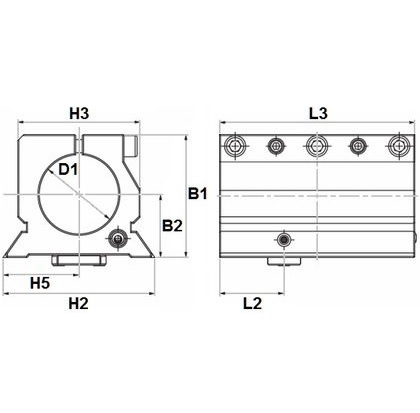

| SKU | H2 | D1 H7 | B1 | B2 | H3 | H5 | L2 | L3 |
| THS007201 | 56 | 32 | 65 | 30 | 52 | 28 | 31 | 94 |
| THS007202 | 56 | 40 | 65 | 30 | 52 | 28 | 31 | 94 |
| THS007203 | 72 | 40 | 76 | 35 | 68 | 36 | 39 | 110 |
| THS007204 | 72 | 50 | 76 | 35 | 68 | 36 | 39 | 110 |
| THS007205 | 90 | 50 | 94 | 45 | 85 | 45 | 39 | 138 |
| THS007206 | 90 | 60 | 94 | 45 | 85 | 45 | 39 | 138 |
| THS001000 | 115 | 60 | 94 | 48 | 93 | 57.5 | 49 | 148 |
| THS003945 | 115 | 80 | 125 | 63 | 115 | 57.5 | 49 | 148 |
| THS003946 | 140 | 80 | 125 | 63 | 115 | 70 | 59 | 178 |
| THS007200 | 140 | 100 | 140 | 70 | 135 | 70 | 59 | 178 |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS000533 DOVETAIL 140 mm FORM D1 BORING BAR HOLDER ID=( 4)" L=75 mm | ||||||
| STRAIGHT | ( 4)" | 75 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001000 DOVETAIL 115 mm FORM D1 BORING BAR HOLDER ID=60 mm L=48 mm | ||||||
| STRAIGHT | 60 mm | 48 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS003945 DOVETAIL 115 mm FORM D1 BORING BAR HOLDER ID=80 mm L=63 mm | ||||||
| STRAIGHT | 80 mm | 63 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS003946 DOVETAIL 140 mm FORM D1 BORING BAR HOLDER ID=80 mm L=63 mm | ||||||
| STRAIGHT | 80 mm | 63 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS007200 DOVETAIL 140 mm FORM D1 BORING BAR HOLDER ID=100 mm L=70 mm | ||||||
| STRAIGHT | 100 mm | 70 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS007201 DOVETAIL 56 mm FORM D1 BORING BAR HOLDER ID=32 mm L=30 mm | ||||||
| STRAIGHT | 32 mm | 30 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS007202 DOVETAIL 56 mm FORM D1 BORING BAR HOLDER ID=40 mm L=30 mm | ||||||
| STRAIGHT | 40 mm | 30 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS007203 DOVETAIL 72 mm FORM D1 BORING BAR HOLDER ID=40 mm L=35 mm SPLIT LEFT | ||||||
| STRAIGHT | 40 mm | 35 mm |
STATIC STATIC |
LEFT HAND | EXTERNAL COOLANT | STRAIGHT |
| THS007204 DOVETAIL 72 mm FORM D1 BORING BAR HOLDER ID=50 mm L=35 mm | ||||||
| STRAIGHT | 50 mm | 35 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS007205 DOVETAIL 90 mm FORM D1 BORING BAR HOLDER ID=50 mm L=45 mm | ||||||
| STRAIGHT | 50 mm | 45 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS007206 DOVETAIL 90 mm FORM D1 BORING BAR HOLDER ID=60 mm L=45 mm | ||||||
| STRAIGHT | 60 mm | 45 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
