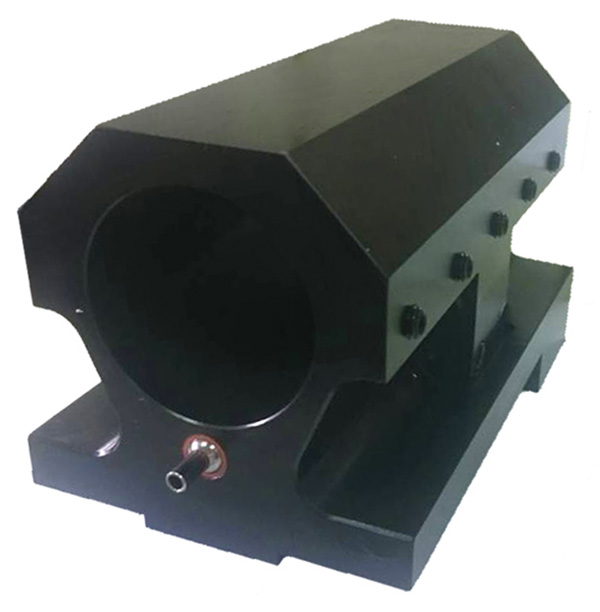

BMT BOLT PATTERN 70x110 BORING BAR HOLDER ID=80 mm L=80 mm LONG 229 FOR LEADWELL LTC50
THS014565
Compatible lathes
- LEADWELL LTC-50CXL TURRET RADIAL (STAR TYPE), LEADWELL LTC50 BOLT PATTERN 70x110 LEADWELL LTC35 LEADWELL LTC50 LEADWELL LTC30P, STATIC, ANY
- LEADWELL LTC-50M TURRET RADIAL EWS BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809,
- LEADWELL LTC-50C TURRET RADIAL (STAR TYPE), LEADWELL LTC50 BOLT PATTERN 70x110 LEADWELL LTC35 LEADWELL LTC50 LEADWELL LTC30P, STATIC, ANY
- LEADWELL LTC-50CL TURRET RADIAL (STAR TYPE), LEADWELL LTC50 BOLT PATTERN 70x110 LEADWELL LTC35 LEADWELL LTC50 LEADWELL LTC30P, STATIC, ANY
- LEADWELL LTC-50B TURRET RADIAL (STAR TYPE), LEADWELL LTC50 BOLT PATTERN 70x110 LEADWELL LTC35 LEADWELL LTC50 LEADWELL LTC30P, STATIC, ANY
- LEADWELL LTC-50CXXL TURRET RADIAL (STAR TYPE), LEADWELL LTC50 BOLT PATTERN 70x110 LEADWELL LTC35 LEADWELL LTC50 LEADWELL LTC30P, STATIC, ANY
- LEADWELL LTC-50BL TURRET RADIAL (STAR TYPE), LEADWELL LTC50 BOLT PATTERN 70x110 LEADWELL LTC35 LEADWELL LTC50 LEADWELL LTC30P, STATIC, ANY
- LEADWELL LTC-50BXL TURRET RADIAL (STAR TYPE), LEADWELL LTC50 BOLT PATTERN 70x110 LEADWELL LTC35 LEADWELL LTC50 LEADWELL LTC30P, STATIC, ANY
- LEADWELL LTC-50BXXL TURRET RADIAL (STAR TYPE), LEADWELL LTC50 BOLT PATTERN 70x110 LEADWELL LTC35 LEADWELL LTC50 LEADWELL LTC30P, STATIC, ANY
- LEADWELL LTC-50 TURRET EWS VDI60 TURRET RADIAL (STAR TYPE), VDI 60, STATIC,
- LEADWELL LTC-45DL TURRET RADIAL (STAR TYPE), LEADWELL LTC50 BOLT PATTERN 70x110 LEADWELL LTC35 LEADWELL LTC50 LEADWELL LTC30P, STATIC,
- LEADWELL LTC-45CXL TURRET RADIAL (STAR TYPE), LEADWELL LTC50 BOLT PATTERN 70x110 LEADWELL LTC35 LEADWELL LTC50 LEADWELL LTC30P, STATIC,
- LEADWELL LTC-45C TURRET RADIAL (STAR TYPE), LEADWELL LTC50 BOLT PATTERN 70x110 LEADWELL LTC35 LEADWELL LTC50 LEADWELL LTC30P, STATIC,
- LEADWELL LTC-45CL TURRET RADIAL (STAR TYPE), LEADWELL LTC50 BOLT PATTERN 70x110 LEADWELL LTC35 LEADWELL LTC50 LEADWELL LTC30P, STATIC,
- LEADWELL LTC-45CL TURRET RADIAL (STAR TYPE), LEADWELL LTC50 BOLT PATTERN 70x110 LEADWELL LTC35 LEADWELL LTC50 LEADWELL LTC30P, STATIC,
- LEADWELL LTC-45CLV TURRET RADIAL (STAR TYPE), LEADWELL LTC50 BOLT PATTERN 70x110 LEADWELL LTC35 LEADWELL LTC50 LEADWELL LTC30P, STATIC,
- LEADWELL LTC-45DXXL TURRET RADIAL (STAR TYPE), LEADWELL LTC50 BOLT PATTERN 70x110 LEADWELL LTC35 LEADWELL LTC50 LEADWELL LTC30P, STATIC,
- LEADWELL LTC-45DXL TURRET RADIAL (STAR TYPE), LEADWELL LTC50 BOLT PATTERN 70x110 LEADWELL LTC35 LEADWELL LTC50 LEADWELL LTC30P, STATIC,
- LEADWELL LTC-45CXXL TURRET RADIAL (STAR TYPE), LEADWELL LTC50 BOLT PATTERN 70x110 LEADWELL LTC35 LEADWELL LTC50 LEADWELL LTC30P, STATIC,
- LEADWELL LTC-45DLV TURRET RADIAL (STAR TYPE), LEADWELL LTC50 BOLT PATTERN 70x110 LEADWELL LTC35 LEADWELL LTC50 LEADWELL LTC30P, STATIC,
$ USD
64300
64300

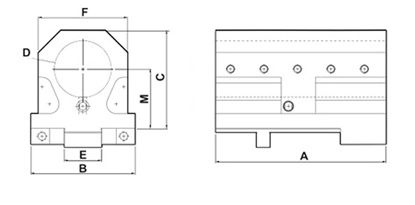

| SKU | LEADWELL LATHE | D | A | B | C | E | F | M |
| SKP036000 SKP035999 |
LEADWELL LTC-50 | 3" (inch) 80 (mm) |
229 | 140 | 100 | 50 | 120 | 80 |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS014563 BMT BOLT PATTERN 70x110 BORING BAR HOLDER ID=( 3)" L=80 mm LONG 229 FOR LEADWELL LTC50 | ||||||
| STRAIGHT | ( 3)" | 80 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS014565 BMT BOLT PATTERN 70x110 BORING BAR HOLDER ID=80 mm L=80 mm LONG 229 FOR LEADWELL LTC50 | ||||||
| STRAIGHT | 80 mm | 80 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
Updated 202505.11
Tool holder machine interface: RADIAL (STAR TYPE) turret, LEADWELL LTC50-BOLT PATTERN 70x110 LEADWELL LTC35 LEADWELL LTC50 LEADWELL LTC30P, STATIC, ANY
