VDI40 DIN5482 RADIAL TAPPING HEAD ER20 L=90 mm BACK SET 50 mm LEFT HAND CW-CW
THS001624
Compatible lathes
- MAGDEBURGER M-400U-2 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- MONFORTS RNC-400MT MULTITURN TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- GRAZIANO CTX-500 NO SUBSP TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- MAGDEBURGER M-400S-4 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- HEYLIGENSTAEDT HEYNUMAT HN-5 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- NILES-SIMMONS N-20 AXIAL SAUTER TURRET VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- MONFORTS MNC-500 DOUBLE-TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- NILES-SIMMONS N-10 DBL-TURRET AXIAL SAUTER VDI30 DIN5482 TURRET AXIAL, VDI 30, DIN5482,
- MONFORTS RNC-600MT MULTITURN AXIAL SAUTER TURRET VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- MONFORTS RNC-400Y TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, Y-AXIS
- MONFORTS RNC-500DT DUOTURN TURRET SAUTER RADIAL VDI40 DIN5480 TURRET RADIAL (STAR TYPE), VDI 40, DIN5480 SAUTER,
- MONFORTS RNC-500Y TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, Y-AXIS
- NILES-SIMMONS N-10 AXIAL SAUTER TURRET VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- ANGELINI DG-13CNC TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- COLCHESTER TORNADO-T220M TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- DMG CTX-500 TURRET RADIAL VDI40 DIN5482 TURRET RADIAL (STAR TYPE), VDI 40, DIN5482,
- LARU B20x17 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- MONFORTS RNC-4 TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- MONFORTS RNC-5 TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- MONFORTS RNC-500MT MULTITURN TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- SAEILO CONTUR-TSL-500 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- SAUTER TURRET AXIAL VDI40 DIN5482 B17x14(40) TURRET AXIAL, VDI 40, DIN5482,
- SAUTER TURRET VDI40 DIN5482 B20x17(40) TURRET AXIAL, VDI 40, DIN5482,
- TRAUB TNA-400 TURRET SAUTER VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- COLCHESTER STORM II-220M TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- DOOSAN MECATEC S-390LM TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- MAGDEBURGER M-120 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- MAGDEBURGER M-160S-4 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- MAGDEBURGER M-160U-2 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- MAGDEBURGER M-160U-4 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- MAGDEBURGER M-300 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- HARDINGE TALENT 8/52A TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- HARDINGE TALENT 10/78 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- WFL MILLTURN M-30 TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- GRAZIANO GT-400 TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- COLCHESTER TORNADO-22M SAUTER TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- COLCHESTER TORNADO-T8M TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- DMG CTX-500-SERIE2 TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- DMG CTX-400-SERIE2 TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- DMG CTX-500E TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- GITAL GT-500 TURRET SAUTER VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- GRAZIANO 400C TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- HARDINGE TALENT 8/66 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- HYUNDAI SKT-21LMS TURRET AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- HYUNDAI SKT-15LMS TURRET AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- KIA SUPER KIA TURN SKT-15LM TURRET AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- KIA SUPER KIA TURN SKT-15LMS TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- KIA SUPER KIA TURN SKT-21 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- KIA SUPER KIA TURN SKT-21L TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- KIA SUPER KIA TURN SKT-21LM TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- KIA SUPER KIA TURN SKT-21LMS TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- KIA SUPER KIA TURN SKT-21LS TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- WIA SKT-15LMS TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- WIA SKT-21LMS TURRET AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- VICTOR VTURN-V560CV TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- VICTOR VTURN-V560 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- ANGELINI BRAVO TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- WFL WNC-300 TURRET AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- HEID S-300 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- GRAZIANO GT-500 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- GRAZIANO CTX-400 NO SUBSP TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- GRAZIANO GR-400C TURRET SAUTER VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- DMG CTX-400S2 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- DMG CTX-600E AXIAL SAUTER TURRET VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- DMG CTX-600S2 AXIAL SAUTER TURRET VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- VOEST-ALPINE WNC-500S TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- CLAUSING TORNADO T-8M TURRET SAUTER VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- CLAUSING TORNADO T-10M TURRET SAUTER VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- CLAUSING TORNADO T-8MS TURRET SAUTER VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- VOEST-ALPINE WNC-400 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- VOEST-ALPINE WNC-300 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- WFL WNC-400 TURRET RADIAL VDI40 DIN5482 TURRET RADIAL (STAR TYPE), VDI 40, DIN5482,
- FAT TUR-630AMN TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- FAT TUR-630MN TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- FAT TUR-560MN TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- FAT TUR-710MN TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- FAT TUR-710AMN TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- FAT FCT-700 12-TLS TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- FAT FCT-700A 12-TLS TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- KIA SUPER TURN ST-21LMS TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- KIA KIA TURN KT-15LMS TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- WIA L-210LMSA TURRET AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- WIA L-150LMSA TURRET AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- DAEWOO PUMA-10S3A TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- DAEWOO PUMA-8HC3A TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- COLCHESTER TORNADO-T10M TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- DOOSAN DOOTURN S-390LM TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- KERN CD-480 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- FAT TUR-630MN-2000 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- MAHO GR-400 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- HEYLIGENSTAEDT HEYNUTWIN HT TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- MONFORTS RNC-600AC TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- KERN CD-650 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- MAHO GR-500 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- DMG CT-60 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- HEYLIGENSTAEDT HEYNUMAT HN-5UK TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- HEYLIGENSTAEDT HEYNUMAT HN-5FK TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- MONFORTS KNC-8 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- MONFORTS RNC-400AC TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- MONFORTS RNC-500AC TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- MAHO MT-500C TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- STOREBRO STM-4000 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- MONFORTS MNC-5Y TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, Y-AXIS
- STOREBRO STB-4000 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- VOEST-ALPINE WNC-300S TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- NILES-SIMMONS N-10LT DBL-TURRET AXIAL SAUTER VDI30 DIN5482 TURRET AXIAL, VDI 30, DIN5482,
- HESSAPP DVT-300 DBL-TURRET RADIAL VDI40 DIN5482 TURRET RADIAL (STAR TYPE), VDI 40, DIN5482,
- MAHO 500T TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- HESSAPP DVT-200 DBL-TURRET RADIAL VDI40 TURRET RADIAL (STAR TYPE), VDI 40, DIN5482,
- WEISSER SOEHNE UNIVERTOR A-90L TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- WEISSER SOEHNE VK C1-CNC TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- WAGNER WDST-780X1200 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- WAGNER WDST-780X700 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- WAGNER WDST-600X600 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- WAGNER WDST-780X1700 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- WAGNER WDST-600X1000 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- WAGNER WDS-560A TURRET AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- WAGNER WDS-560 TURRET AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- WAGNER WDS-480 8-TLS TURRET AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- DAINICHI DIN5482 B17x14 (40) TURRET RADIAL (STAR TYPE), VDI 40, DIN5482, ANY
$ USD
343000
343000

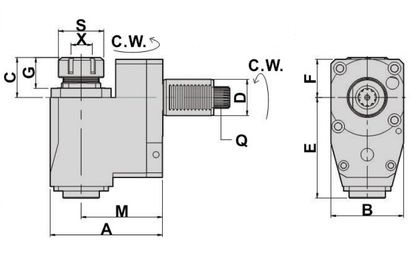

| SKU | D DIN 69880 |
X Capacity |
S | RPM | Gear Ratio |
A | B | C | E | F | G | M | Q DIN 5482 |
| THS001618 | 30 | 1~10 ER16 | 30 | 3000 | 1 : 1 | 95 | 60 | 44 | 75.5 | 31.5 | 32 | 72 | B15x12 |
| THS001624 | 40 | 1~13 ER20 | 35 | 3000 | 1 : 1 | 124 | 80 | 50 | 110 | 42 | 34 | 90 | B17x14 |
| THS001627 | 50 | 1~16 ER25 | 42 | 3000 | 1 : 1 | 129 | 86 | 54 | 112 | 45 | 36 | 90 | B20x17 |
| THS001630 | 60 | 2~20 ER32 | 50 | 3000 | 1 : 1 | 147 | 104 | 87 | 118 | 54 | 40 | 106 | B25x22 |
Updated 2022-02-23
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS001618 VDI30 DIN5482 RADIAL TAPPING HEAD ER16 L=72 mm BACK SET 44 mm LEFT HAND CW-CW | ||||||
| ANGLE 90 DEGREE | ER16 | 72 mm |
CW-CW 1:1 |
LEFT HAND | EXTERNAL COOLANT | BACK SET |
| THS001624 VDI40 DIN5482 RADIAL TAPPING HEAD ER20 L=90 mm BACK SET 50 mm LEFT HAND CW-CW | ||||||
| ANGLE 90 DEGREE | ER20 | 90 mm |
CW-CW 1:1 |
LEFT HAND | EXTERNAL COOLANT | BACK SET |
| THS001627 VDI50 DIN5482 RADIAL TAPPING HEAD ER25 L=90 mm BACK SET 54 mm LEFT HAND CW-CW | ||||||
| ANGLE 90 DEGREE | ER25 | 90 mm |
CW-CW 1:1 |
LEFT HAND | EXTERNAL COOLANT | BACK SET |
| THS001630 VDI60 DIN5482 RADIAL TAPPING HEAD ER32 L=106 mm BACK SET LEFT HAND CW-CW | ||||||
| ANGLE 90 DEGREE | ER32 | 106 mm |
CW-CW 1:1 |
LEFT HAND | EXTERNAL COOLANT | BACK SET |
Updated 202506.19
Tool holder machine interface: ANY turret, VDI-40, DIN5482, ANY
