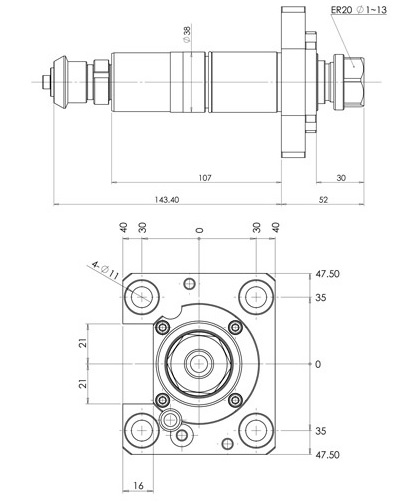

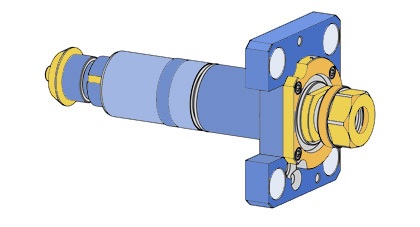

BMT BOLT PATTERN 60x70 AXIAL DRILLING MILLING HEAD ER20 FOR TAKAMAZ X10 TAKAMAZ XY12
THS007934

Compatible lathes

$ USD USD 343300
...

SKU Interface Direction Capacity Projection Rotation Hand Coolant Offset
THS007934 BMT BOLT PATTERN 60x70 AXIAL DRILLING MILLING HEAD ER20 FOR TAKAMAZ X10 TAKAMAZ XY12
TAKAMAZ XY12
38
BEVEL GEAR

Updated 202303

Tool holder machine interface: N/S turret, TAKAMAZ XY12-38, BEVEL GEAR, ANY

COMPATIBLE LATHES

TAKAMAZ X-12 TURRET TAKAMAZ XY12 38, BEVEL GEAR, ANY;   TAKAMAZ XY-12 TURRET TAKAMAZ XY12 38, BEVEL GEAR, Y-AXIS;
