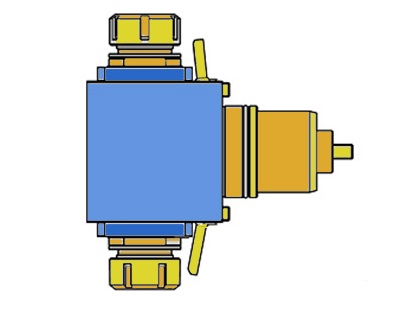

BMT BOLT PATTERN 71x69 RADIAL MILLING HEAD DOUBLE ER32 FOR NAKAMURA SUPERMILL WY250L
THS015424
Compatible lathes
- NAKAMURA WT-300 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809,
- NAKAMURA SUPERMILL WY-250L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WT-150 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WY-250 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WT-150II TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS

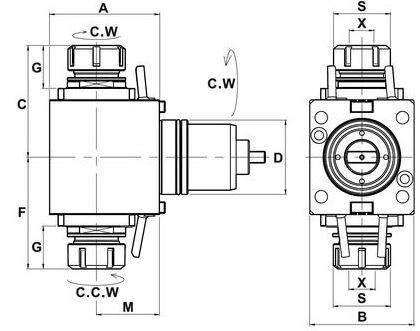

| SKU | D | X Capacity |
S | RPM | A | B | C | F | G | M | NAKAMURA LATHE |
| SKP021288 | 65 | 2~20 ER32 | 50 | 4000 | 96 | 91 | 97.5 | 97.5 | 37.5 | 55 | NAKAMURA SUPERMILL WY-250L |
Updated 2022-02-23
| SKU | Interface | Direction | Capacity | Projection | Rotation | Hand | Coolant | Offset | |
| THS015424 | BMT BOLT PATTERN 71x69 RADIAL MILLING HEAD DOUBLE ER32 FOR NAKAMURA SUPERMILL WY250L | ||||||||
|
NAKAMURA WT300 65 DIN1809 |
|
||||||||
Updated 202301
Tool holder machine interface: N/S turret, NAKAMURA WT300-65, DIN1809, ANY
COMPATIBLE LATHES
NAKAMURA WT-300 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, ; NAKAMURA SUPERMILL WY-250L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WT-150 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WY-250 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WT-150II TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS;
