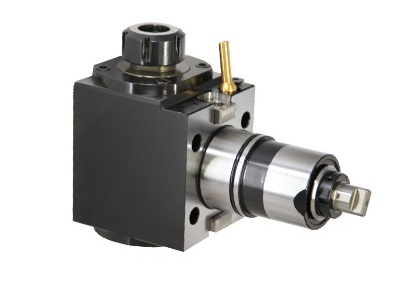

BMT BOLT PATTERN 69x71 RADIAL DRILLING MILLING HEAD ER32 L= 65mm FOR NAKAMURA WT300
THS004323
Compatible lathes
- NAKAMURA WT-300 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809,
- NAKAMURA SUPERMILL WY-250L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WT-150 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WY-250 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WT-150II TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
$ USD
355300
355300
| SKU | D | X Capacity |

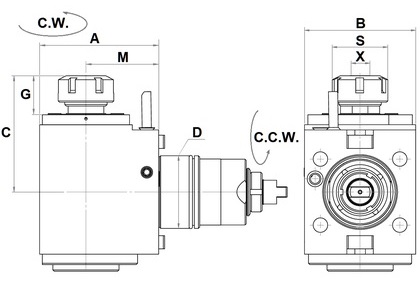

S | RPM | Ratio | A | B | C | G | M | NAKAMURA LATHE |
| THS004313 | 44 | 1~13 ER20 | 35 | 5000 | 1 : 1 | 86 | 75 | 78.5 | 25 | 60 | NAKAMURA WT-100 |
| THS004314 | 92 | 75 | 82.5 | 29 | 60 | ||||||
| THS004316 | 44 | 1~13 ER20 | 35 | 8000 | 1 : 2 | 88 | 75 | 84 | 30 | 60 | NAKAMURA WT-100 |
| THS004315 | 88 | 75 | 82.5 | 29 | 60 | ||||||
| THS004318 | 44 | 1~13 ER20 | 35 | 5000 | 1 : 1 | 107 | 75 | 84 | 30 | 75 | NAKAMURA WT-100 |
| THS004317 | 107 | 75 | 84 | 30 | 75 | ||||||
| THS004319 THS004320 |
55 | 1~16 ER25 | 42 | 5000 | 1 : 1 | 90 | 84 | 88 | 30 | 55 | NAKAMURA WT-150 |
| THS004326 | 55 | 1~16 ER25 | 42 | 8000 | 1 : 2 | 90 | 84 | 88 | 30 | 55 | NAKAMURA WT-150 |
| THS004322 DF55NA-ER32-55-CTS |
55 | 2~20 ER32 | 50 | 5000 | 1 : 1 | 90 | 84 | 100 | 41.5 | 55 | NAKAMURA WT-150 |
| THS004323 THS006540 |
65 | 2~20 ER32 | 50 | 5000 | 1 : 1 | 106 | 96 | 104 | 37.5 | 65 | NAKAMURA WT-300 |
Coolant-Through Spindle: THS004314, THS004315, THS004317, THS004320, DF55NA-ER32-55-CTS, THS006540
Updated 2022-02-23
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS004313 BMT BOLT PATTERN 40x55 RADIAL DRILLING MILLING HEAD ER20 L=60mm FOR NAKAMURA WT100 | ||||||
|
|
||||||
| THS004314 BMT BOLT PATTERN 40x55 RADIAL DRILLING MILLING HEAD ER20 L=60mm CTS FOR NAKAMURA WT100 | ||||||
|
|
||||||
| THS004315 BMT BOLT PATTERN 40x55 RADIAL DRILLING MILLING HEAD ER20 L=60mm 1:2 CTS FOR NAKAMURA WT100 | ||||||
|
|
||||||
| THS004316 BMT BOLT PATTERN 40x55 RADIAL DRILLING MILLING HEAD ER20 L=60mm 1:2 FOR NAKAMURA WT100 | ||||||
|
|
||||||
| THS004317 BMT BOLT PATTERN 40x55 RADIAL DRILLING MILLING HEAD ER20 L=75mm CTS FOR NAKAMURA WT100 | ||||||
|
|
||||||
| THS004318 BMT BOLT PATTERN 40x55 RADIAL DRILLING MILLING HEAD ER20 L=75mm FOR NAKAMURA WT100 | ||||||
|
|
||||||
| THS004319 BMT BOLT PATTERN 50x60 RADIAL DRILLING MILLING HEAD ER25 L= 55mm FOR NAKAMURA WT150 | ||||||
|
|
||||||
| THS004320 BMT BOLT PATTERN 50x60 RADIAL DRILLING MILLING HEAD ER25 L= 55mm CTS FOR NAKAMURA WT150 | ||||||
|
|
||||||
| THS004322 BMT BOLT PATTERN 50x60 RADIAL DRILLING MILLING HEAD ER32 L= 55mm FOR NAKAMURA WT150 | ||||||
|
|
||||||
| THS004323 BMT BOLT PATTERN 69x71 RADIAL DRILLING MILLING HEAD ER32 L= 65mm FOR NAKAMURA WT300 | ||||||
|
|
||||||
| THS004326 BMT BOLT PATTERN 50x60 RADIAL DRILLING MILLING HEAD ER25 L= 55mm 1:2 FOR NAKAMURA WT150 | ||||||
|
|
||||||
| THS006540 BMT BOLT PATTERN 69x71 RADIAL DRILLING MILLING HEAD ER32 L= 65mm CTS FOR NAKAMURA WT300 | ||||||
|
|
||||||
Updated 202305
Tool holder machine interface: RADIAL (STAR TYPE) turret, NAKAMURA WT300-65, DIN1809, ANY
COMPATIBLE LATHES
NAKAMURA WT-300 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, ; NAKAMURA SUPERMILL WY-250L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WT-150 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WY-250 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WT-150II TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS;
