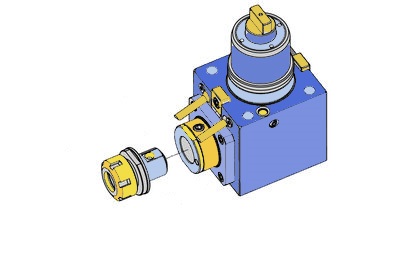

BMT BOLT PATTERN 69x71 RADIAL DRILLING MILLING HEAD ER25 L= 55mm QUICK CHANGE FOR NAKAMURA
THS005788
Compatible lathes
- NAKAMURA WT-300 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809,
- NAKAMURA SUPERMILL WY-250L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WT-150 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WY-250 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WT-150II TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
$ USD
452200
452200
| SKU | D | X Capacity |
S | RPM | A | B | C | F | G | M | NAKAMURA LATHE |
| THS005788 | 65 | 1~16 ER25 | 42 | 5000 | 96 | 91 | 115 | 61 | 55 | 55 | NAKAMURA SUPERMILL WT-150 |
Updated 2022-02-23
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS005788 BMT BOLT PATTERN 69x71 RADIAL DRILLING MILLING HEAD ER25 L= 55mm QUICK CHANGE FOR NAKAMURA | ||||||
|
|
||||||
Updated 202305
Tool holder machine interface: RADIAL (STAR TYPE) turret, NAKAMURA WT300-65, DIN1809, ANY
COMPATIBLE LATHES
NAKAMURA WT-300 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, ; NAKAMURA SUPERMILL WY-250L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WT-150 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WY-250 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WT-150II TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS;
