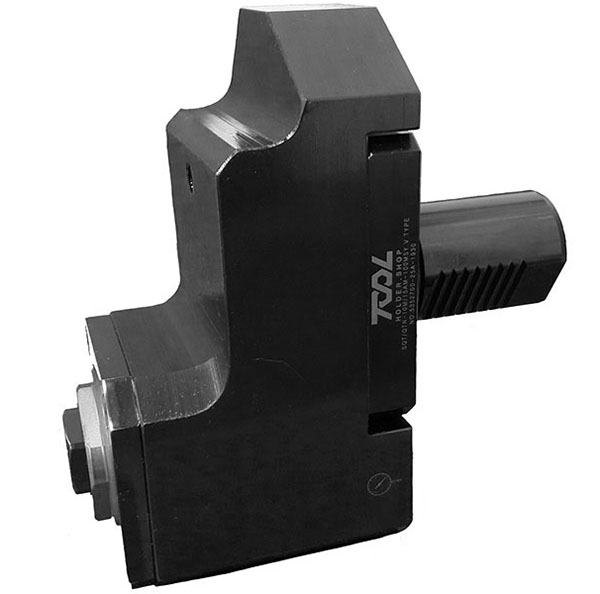

MAZAK SQT10M/SQT15M AXIAL TAPPING HEAD ER20 OFFSET 50 mm
THS000716
Compatible lathes
- MAZAK SUPER QUICK TURN SQT-15MSY DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT15 MAZAK SQT18 MAZAK SQT200 MAZAK SQT250 12 TOOLS MAZAK QTN200 MAZAK QTN250 PIN70 40, MAZAK SQT15 (REGULAR), Y-AXIS
- MAZAK SUPER QUICK TURN SQT-18MSY DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT15 MAZAK SQT18 MAZAK SQT200 MAZAK SQT250 12 TOOLS MAZAK QTN200 MAZAK QTN250 PIN70 40, MAZAK SQT15 (REGULAR), Y-AXIS
- MAZAK SUPER QUICK TURN SQT-18MY DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT15 MAZAK SQT18 MAZAK SQT200 MAZAK SQT250 12 TOOLS MAZAK QTN200 MAZAK QTN250 PIN70 40, MAZAK SQT15 (REGULAR),
- MAZAK SUPER QUICK TURN SQT-15AMS DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI 40, STATIC, ANY
- MAZAK SUPER QUICK TURN SQT-200MY TURRET VDI40 12 POS TURRET RADIAL (STAR TYPE), MAZAK SQT15 MAZAK SQT18 MAZAK SQT200 MAZAK SQT250 12 TOOLS MAZAK QTN200 MAZAK QTN250 PIN70 40, MAZAK SQT15 (REGULAR), Y-AXIS
- MAZAK SUPER QUICK TURN SQT-10MS-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-250M TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT15 MAZAK SQT18 MAZAK SQT200 MAZAK SQT250 12 TOOLS MAZAK QTN200 MAZAK QTN250 PIN70 40, MAZAK SQT15 (REGULAR), Y-AXIS
- MAZAK QUICK TURN NEXUS QTNX-100II-M TURRET RADIAL DIA.40 TURRET
- MAZAK SUPER QUICK TURN SQT-10M-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-15MS-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-200MS-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-250MS-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT15 MAZAK SQT18 MAZAK SQT200 MAZAK SQT250 12 TOOLS MAZAK QTN200 MAZAK QTN250 PIN70 40, MAZAK SQT15 (REGULAR),
- MAZAK SUPER QUICK TURN SQT-15M-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-200M-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-250M-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-10M TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI 40, STATIC, ANY
- MAZAK QUICK TURN NEXUS QTN-150M TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK QUICK TURN NEXUS QTNX-200M-12D TURRET DIA.40 TURRET RADIAL (STAR TYPE), MAZAK MP410N MAZAK 415N MAZAK 610 MAZAK 610N MAZAK 615N 12 TOOLS TURRET MAZAK 6200 16 TOOL 40, MAZAK MP610 (SHORT), ANY
- MAZAK QUICK TURN NEXUS QTNX-250M-12D TURRET RADIAL (STAR TYPE), MAZAK SQT15 MAZAK SQT18 MAZAK SQT200 MAZAK SQT250 12 TOOLS MAZAK QTN200 MAZAK QTN250 PIN70 40, STATIC,
- MAZAK SUPER QUICK TURN SQT-15AM DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, STATIC, ANY
- MAZAK QUICK TURN NEXUS QTN-100M TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-250MS-16D RADIAL TURRET DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
363400

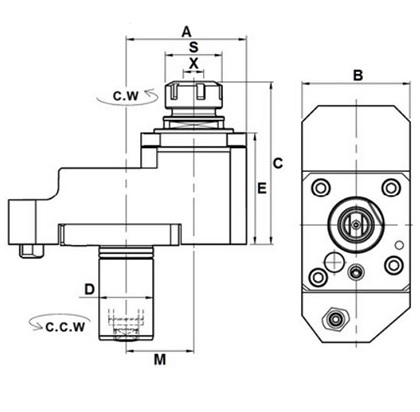

| SKU | D | X Capacity |
S | RPM | A | B | C | E | M | MAZAK LATHE | MAZAK LATHE |
| THS000713 | 40 | 1~10 ER16 | 30 | 4000 | 88 | 75 | 119 | 81.5 | 50 | MAZAK QTN 100M MAZAK QTN 150M MAZAK SQT 10M |
MAZAK SQT 10M-12D MAZAK SQT 15M-16D MAZAK SQT 200M-16D MAZAK 250M-16D |
| THS000716 | 1~13 ER20 | 35 | 121 | 82 |
Updated 2022-02-23
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS000713 MAZAK AXIAL TAPPING HEAD ER16 OFFSET L=50 mm FOR MAZAK SQT10M MAZAK SQT15M | ||||||
| STRIGHT | ER16 | 50 mm |
STATIC 1:1 |
STRIGHT | EXTERNAL COOLANT | OFFSET |
| THS000716 MAZAK SQT10M/SQT15M AXIAL TAPPING HEAD ER20 OFFSET 50 mm | ||||||
| STRIGHT | ER20 |
STATIC 1:1 |
STRIGHT | EXTERNAL COOLANT | OFFSET | |
Updated 202305
Tool holder machine interface: ANY turret, MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68-40, MAZAK SQT10 (SHORT), ANY
COMPATIBLE LATHES
