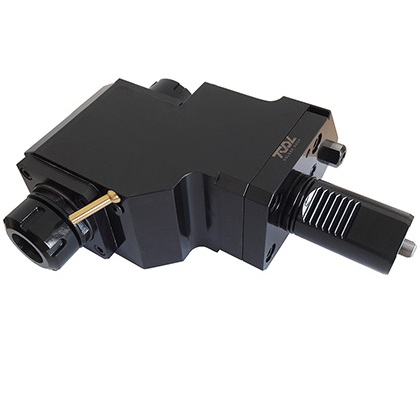

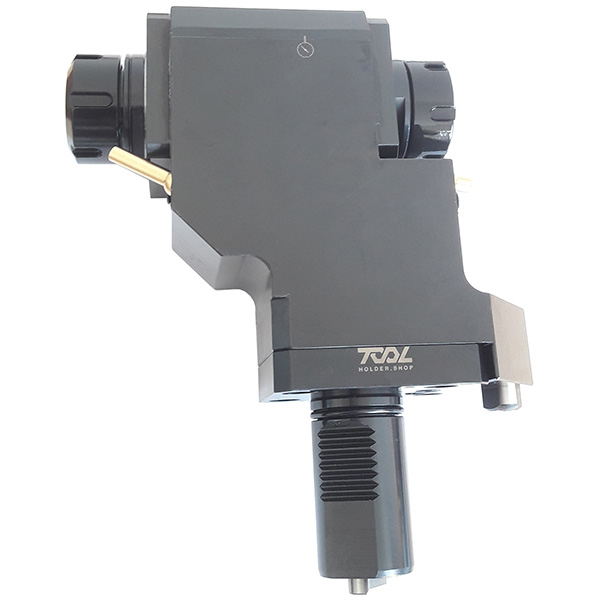

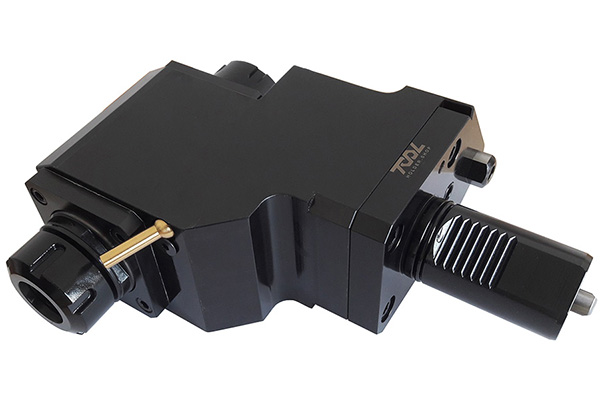

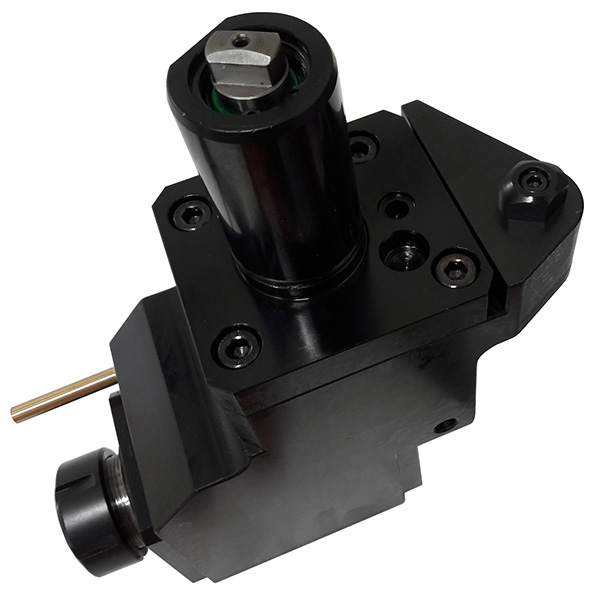

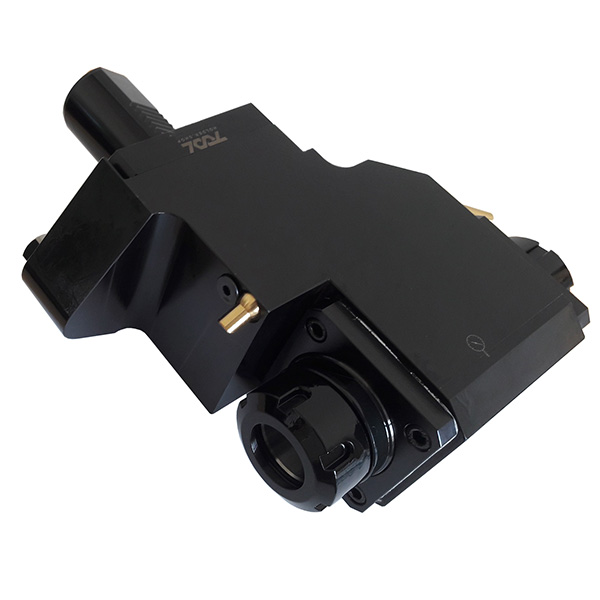

VDI40 MAZAK H TYPE DOUBLE RADIAL DRILLING MILLING HEAD ER32x2 L=130mm FOR SQT15 18 SQT200
THS004210
Compatible lathes
- MAZAK SUPER QUICK TURN SQT-15MSY DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
- MAZAK SUPER QUICK TURN SQT-100M-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
- MAZAK SUPER QUICK TURN SQT-18MSY DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
- MAZAK SUPER QUICK TURN SQT-18MY DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK SUPER QUICK TURN SQT-15MY DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
- MAZAK SUPER QUICK TURN SQT-15AMS DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI 40, STATIC, ANY
- MAZAK SUPER QUICK TURN SQT-200MY TURRET VDI40 12 POS TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
- MAZAK SUPER QUICK TURN SQT-10MS-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN16x68 OFFSET SQT10 12D 15 16 TOOLS 200 250 16T QTN100 QTN150 PIN68 40, MAZAK FLAT SHORT MAZAK SQT10 *TO BE REVISED*,
- MAZAK SUPER QUICK TURN SQT-100MS-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
- MAZAK QT-COMPACT 300MS TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
- MAZAK SUPER QUICK TURN SQT-250MY-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 50, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK SUPER QUICK TURN SQT-250MSY TURRET DIA.40 TURRET ANY, MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK MULTIPLEX MP-6300-II TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
- MAZAK SUPER QUICK TURN SQT-200MSY TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
- MAZAK SUPER QUICK TURN SQT-200MS TURRET RADIAL 12 TOOLS VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK QUICK TURN NEXUS QTN-100II-M TURRET RADIAL DIA.40 TURRET
- MAZAK MEGATURN SMART 500MS TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK SUPER QUICK TURN SQT-15MS-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN16x68 OFFSET SQT10 12D 15 16 TOOLS 200 250 16T QTN100 QTN150 PIN68 40, MAZAK FLAT SHORT MAZAK SQT10 *TO BE REVISED*,
- MAZAK MULTIPLEX MP-6200-II TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK SUPER QUICK TURN SQT-18MS TURRET RADIAL 12 TOOL VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK SUPER QUICK TURN SQT-250MS TURRET RADIAL 12 TOOLS VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK SUPER QUICK TURN SQT-15M TURRET RADIAL 12 TOOL VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK SUPER QUICK TURN SQT-18M TURRET RADIAL 12 TOOL VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK SUPER QUICK TURN SQT-200M TURRET RADIAL 12 TOOLS VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK SUPER QUICK TURN SQT-250M TURRET RADIAL 12 TOOLS VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK MEGATURN SMART 500S TURRET RADIAL (STAR TYPE), MAZAK VDI 40, STATIC, ANY
- MAZAK QUICK TURN NEXUS QTN-200M-12D TURRET DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 0 DEG PIN16x68 OFFSET MP410N 415N 610 610N 615N 12 TOOLS TURRET 6200 16 TOOL 40, MAZAK MP610 (FLUSH), ANY
- MAZAK QUICK TURN NEXUS QTN-250M-12D TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, STATIC,
- MAZAK SUPER QUICK TURN SQT-15AM DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN16x68 OFFSET SQT10 12D 15 16 TOOLS 200 250 16T QTN100 QTN150 PIN68 40, STATIC, ANY
- MAZAK QUICK TURN NEXUS QTN-200II-M TURRET MAZAK DIA.40 TURRET ANY, MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK QUICK TURN NEXUS QTN-250II-M TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK QUICK TURN NEXUS QTN-200II-MS TURRET MAZAK DIA.40 TURRET ANY, MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK QUICK TURN NEXUS QTN-250II-MS TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK SUPER QUICK TURN SQT-15MS TURRET RADIAL 12 TOOL VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK QUICK TURN NEXUS QTN-250MSY TURRET DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
- MAZAK QUICK TURN NEXUS QTN-250MS TURRET RADIAL 12 TOOL VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK QUICK TURN NEXUS QTN-250M TURRET RADIAL 12 TOOL VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK SUPER QUICK TURN SQT-100-12D DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
- MAZAK SUPER QUICK TURN SQT-200-12D DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK QUICK TURN NEXUS QTN-200M TURRET RADIAL 12 TOOL VDI40. TURRET ANY, MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK QUICK TURN QT-200-8D TURRET MAZAK VDI40 PIN70 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, ANY
- MAZAK QUICK TURN NEXUS QTN-250MSYII TURRET DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
- MAZAK QUICK TURN NEXUS QTN-200MS TURRET RADIAL 12 TOOL VDI40 TURRET ANY, MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*,
- MAZAK QUICK TURN QT-250MSY TURRET RADIAL 12 TOOL VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250 40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, Y-AXIS
$ USD
504000
504000
| SKU | D | X Capacity |
S | RPM | A | B | C | C1 | E | E1 | M | MAZAK LATHE | MAZAK LATHE |
| THS004210 | 40 | 2~20 ER32 | 50 | 4000 | 167 | 80 | 127 | 57 | 89 | 19 | 130 | MAZAK QTN 200M MAZAK QTN 250M MAZAK SQT 15 MAZAK SQT 18M |
MAZAK SQT 15M-12D MAZAK SQT 18M-12D MAZAK SQT 200M-12D MAZAK SQT 250M-12D |
Updated 2022-02-23
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS004210 VDI40 MAZAK H TYPE DOUBLE RADIAL DRILLING MILLING HEAD ER32x2 L=130mm FOR SQT15 18 SQT200 | ||||||
| ANGLE 90 DEGREE | ER32 | 130 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
Updated 202505.11
Tool holder machine interface: ANY turret, MAZAK VDI40 30DEG PIN20x70 OFFSET SQT15 MAZAK SQT18 SQT200 SQT250 MAZAK QTN200 QTN250-40, MAZAK FLAT LONG MAZAK SQT15 *to be revised*, ANY
