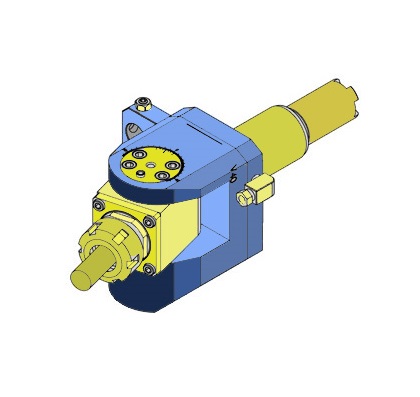

VDI40 HAAS 117 UNIVERSAL DRILLING MILLING HEAD ER25B L=70 mm FOR HAAS SL40
THS003889
Compatible lathes
- HAAS ST-20SSY HYBRID-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR, Y-AXIS
- HAAS TL-15 VDI-TURRET AXIAL HAAS VDI40 TURRET AXIAL, VDI 40, HAAS-GEAR,
- HAAS ST-35Y HYBRID-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR, Y-AXIS
- HAAS ST-10 HYBRID-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR,
- HAAS TL-25 VDI-TURRET AXIAL HAAS VDI40 TURRET AXIAL, VDI 40, HAAS-GEAR,
- HAAS ST-35Y VDI-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR, Y-AXIS
- HAAS ST-35 HYBRID-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR,
- HAAS ST-35 VDI-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR,
- HAAS ST-20Y HYBRID VDI/BOT HAAS TURRET TURRET ANY, VDI 40, HAAS-GEAR, Y-AXIS
- HAAS ST-25 HYBRID-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR,
- HAAS ST-30 HYBRID-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR,
- HAAS ST-30Y HYBRID-TURRET AXIAL HAAS VDI40 TURRET AXIAL, VDI 40, HAAS-GEAR, Y-AXIS
- HAAS ST-10Y HYBRID-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR, Y-AXIS
- HAAS TCE-860 TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR,
- HAAS ST-10 VDI-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR,
- HAAS ST-30Y VDI-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR, Y-AXIS
- HAAS ST-25Y HYBRID-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR, Y-AXIS
- HAAS ST-10Y VDI-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR, Y-AXIS
- HAAS ST-20Y VDI-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR, Y-AXIS
- HAAS ST-20 HYBRID-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR,
- HAAS ST-25Y VDI-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR, Y-AXIS
- HAAS ST-25 VDI-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR,
- HAAS DS-30 Hybrid Turret 6 BOT/6 VDI TURRET ANY, VDI 40, HAAS-GEAR,
- HAAS DS-30SS Hybrid Turret 12 BOT/12 VDI TURRET ANY, VDI 40, HAAS-GEAR,
- HAAS DS-30Y Hybrid Turret 6 BOT/6 VDI TURRET ANY, VDI 40, HAAS-GEAR, Y-AXIS
- HAAS DS-30SSY Hybrid Turret 12 BOT/12 VDI TURRET AXIAL, VDI 40, HAAS-GEAR, Y-AXIS
- HAAS ST-40 HYBRID-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR,
- HAAS ST-20SS HYBRID-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR,
- HAAS ST-30SS HYBRID-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR,
- HAAS ST-40L HYBRID-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR,
- HAAS ST-30SSY HYBRID-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR, Y-AXIS
- HAAS ST-45L HYBRID-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR,
- HAAS ST-45 HYBRID-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR,
$ USD
583800
583800

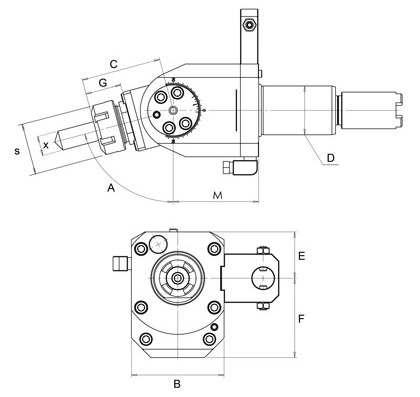

| SKU | D DIN 69880 |
X Capacity |
RPM | S | A | B | C | E | F | G | M |
| THS003864 | 40 | 1~13 ER20 | 4000 | 42 | ±90° | 76 | 66 | 38 | 65 | 29.5 | 70 |
| THS003889 | 40 | 1~16 ER25 | 4000 | 42 | ±90° | 76 | 66 | 38 | 65 | 29.5 | 70 |
| THS003891 | 40 | 2~20 ER32 | 4000 | 50 | ±90° | 76 | 89 | 38 | 65 | 52.5 | 70 |
Updated 2022-02-23
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS003864 VDI40 HAAS 117 UNIVERSAL DRILLING MILLING HEAD ER20B L=70 mm FOR HAAS SL40 | ||||||
| UNIVERSAL | ER20 | 136 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS003889 VDI40 HAAS 117 UNIVERSAL DRILLING MILLING HEAD ER25B L=70 mm FOR HAAS SL40 | ||||||
| STRAIGHT | ER25 | 171 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS003891 VDI40 HAAS 117 UNIVERSAL DRILLING MILLING HEAD ER32B L=70 mm FOR HAAS SL40 | ||||||
| UNIVERSAL | ER32 | 193 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS019877 VDI40 HAAS 130 UNIVERSAL DRILLING MILLING HEAD ER25B L=65 mm FOR HAAS | ||||||
|
|
||||||
| THS019878 VDI40 HAAS 104 UNIVERSAL DRILLING MILLING HEAD ER25B L=65 mm FOR HAAS | ||||||
|
|
||||||
Updated 202506.19
