Home >> Tool Holder Driven (Live Tooling) >> BMT Axial Drilling-Milling Head

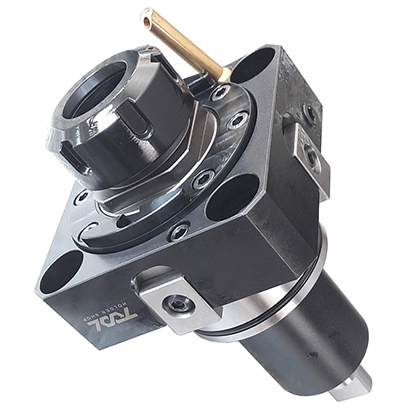

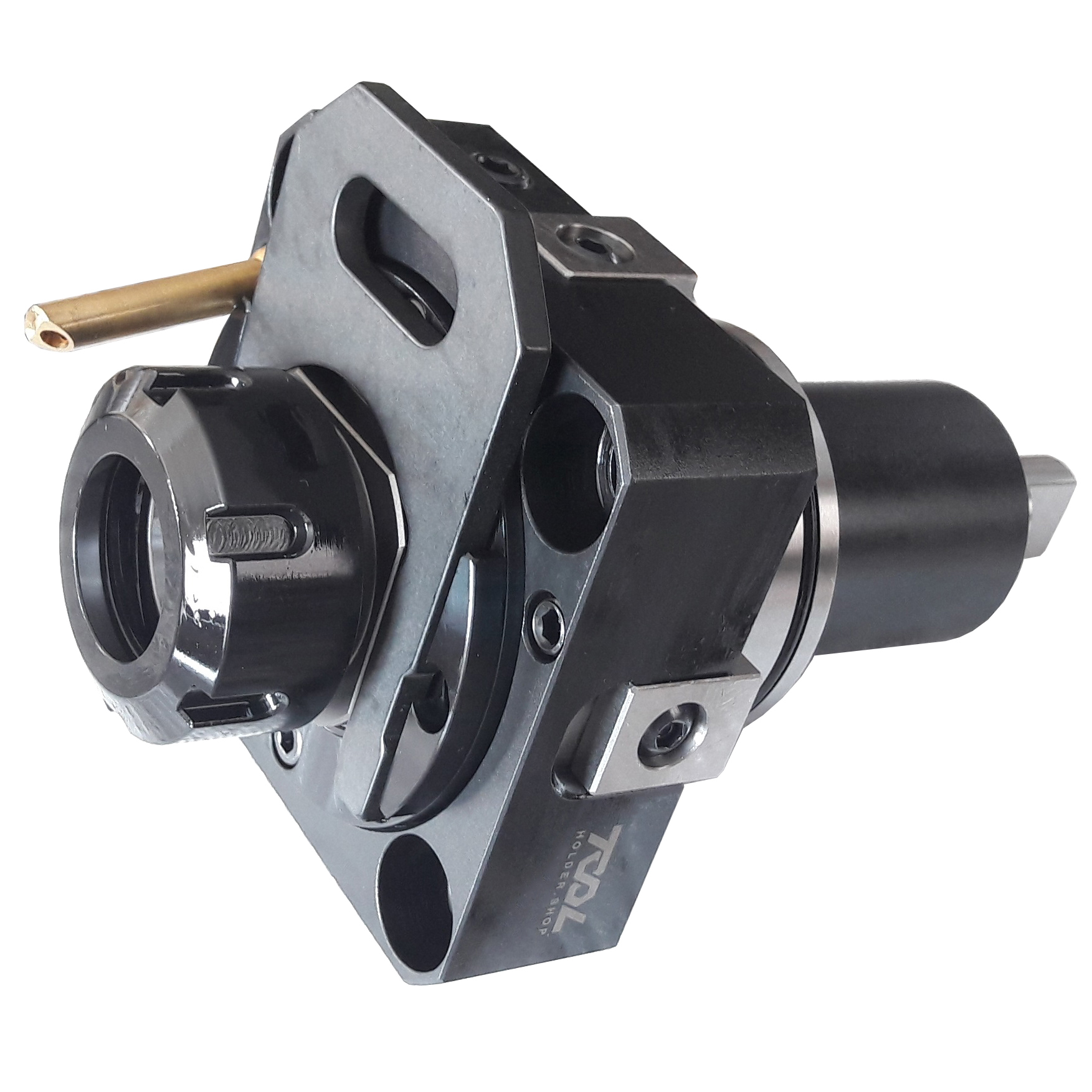

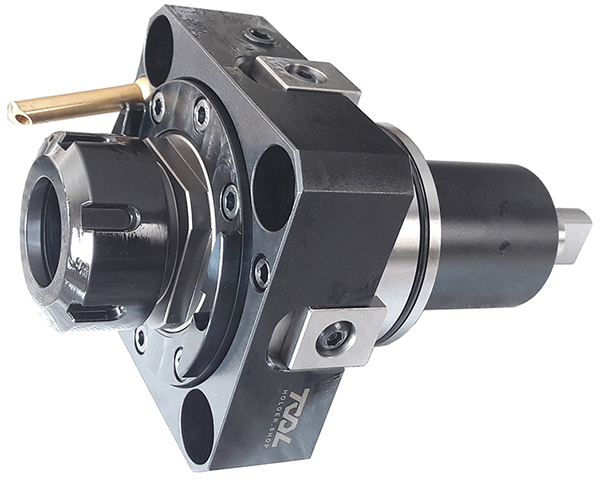

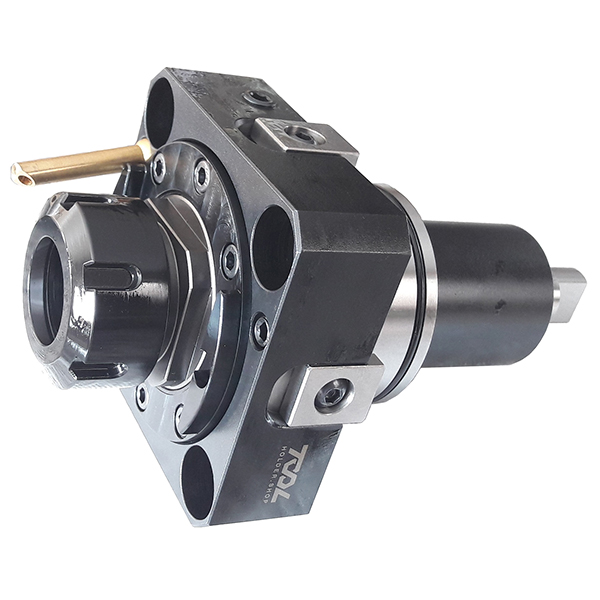

BMT75 DIN1809 AXIAL DRILLING MILLING HEAD ER40
THS005203

Compatible lathes

$ USD USD 212800
SKU D X
Collet size		 S MAX RPM A B C E Bolt
pattern
THS000200 45 1~13 ER20 35 6000 60 32.5 75 75 BMT45
THS000199 1~16 ER25 42 67.5 40 75 75
THS001097 55 1~16 ER25 42 6000 62 33 85 85 BMT55
THS006390 1~16 ER25 42 77 31.2 85 85
THS005686 2~20 ER32 50 81 51 85 85
THS012058 2~20 ER32 50 97 51 85 85
THS006577 65 1~16 ER25 42 6000 66.5 35.5 94 94 BMT65
THS003983 2~20 ER32 50 68.5 38.5 94 94
THS004592 2~20 ER32 50 83 38 94 94
THS004589 2~20 ER32 50 58 36 94 94
THS007306 2~20 ER32 50 120 89 94 94
THS004591 2~20 ER32 50 89 58 94 94
THS004590 2~20 ER32 50 101 70 94 94
THS004371 3~26 ER40 63 80.5 49.5 94 94
THS004372 3~26 ER40 63 94 49 94 94
THS005203 75 3~26 ER40 63 6000 78 43 115 115 BMT75
THS005204 3~26 ER40 63 83 41 112 115
THS006603 85 3~26 ER40 63 6000 91 51 125 125 BMT85
THS005697 3~26 ER40 63 91 51 125 125
THS006604 10~34 ER50 78 94 54 125 125
THS006605 10~34 ER50 78 119 50 125 125
* CTS - Coolant-Through Spindle
** S - Short
*** L - Long

...

DIRECTION CAPACITY PROJECTION ROTATION HAND COOLANT OFFSET
THS000199 BMT45 DIN1809 AXIAL DRILLING MILLING HEAD ER25 L=56 mm FOR DAEWOO LYNX220
STRAIGHT ER25 56 mm CW-CW
1:1		 STRAIGHT EXTERNAL COOLANT STRAIGHT
THS000200 BMT45 DIN1809 AXIAL DRILLING MILLING HEAD ER20 L=60 mm FOR DAEWOO LYNX220
STRAIGHT ER20 60 mm CW-CW
1:1		 STRAIGHT EXTERNAL COOLANT STRAIGHT
THS001097 BMT55 DIN1809 AXIAL DRILLING MILLING HEAD ER25 L=77 mm OEM EPPINGER 7.073.118 FOR DAEWOO
STRAIGHT ER25 77 mm CW-CW
1:1		 STRAIGHT EXTERNAL COOLANT STRAIGHT
THS003983 BMT65 BOLT PATTERN 70x73 AXIAL DRILLING MILLING HEAD ER32 L= 70 mm OEM EWS 40.65321809DW

THS004335 BMT45 DIN1809 AXIAL DRILLING MILLING HEAD ER25 FOR DAEWOO LYNX220 COOLANT THROUGH
STRAIGHT ER25 61 mm CW-CW
1:1		 STRAIGHT INTERNAL COOLANT THROUGH STRAIGHT
THS004371 BMT65 BOLT PATTERN 70x73 AXIAL DRILLING MILLING HEAD ER40 L=100 mm FOR DAEWOO

THS004372 BMT65 BOLT PATTERN 70x73 AXIAL DRILLING MILLING HEAD ER40 L= 94 mm INT COOLANT FOR DAEWOO

THS004589 BMT65 BOLT PATTERN 70x73 AXIAL DRILLING MILLING HEAD ER32 L= 58 mm FOR DAEWOO

THS004590 BMT65 BOLT PATTERN 70x73 AXIAL DRILLING MILLING HEAD ER32 L=100 mm FOR DAEWOO

THS004591 BMT65 BOLT PATTERN 70x73 AXIAL DRILLING MILLING HEAD ER32 L= 89 mm FOR DAEWOO
STRAIGHT ER32 89 mm CW-CW
1:1		 STRAIGHT EXTERNAL COOLANT STRAIGHT
THS004592 BMT65 BOLT PATTERN 70x73 AXIAL DRILLING MILLING HEAD ER32 L= 83 mm INT COOLANT FOR DAEWOO
STRAIGHT ER32 83 mm CW-CW
1:1		 STRAIGHT INTERNAL COOLANT THROUGH STRAIGHT
THS005203 BMT75 DIN1809 AXIAL DRILLING MILLING HEAD ER40

THS005204 BMT75 DIN1809 AXIAL DRILLING MILLING HEAD ER40 INTERNAL COOLANT

THS005686 BMT55 DIN1809 AXIAL DRILLING MILLING HEAD ER32 L= 81 mm FOR DAEWOO DOOSAN

THS005697 BMT85 BOLT PATTERN 100x100 DIN1809 AXIAL DRILLING MILLING HEAD ER40 CTS FOR DAEWOO

THS006390 BMT55 DIN1809 AXIAL DRILLING MILLING HEAD ER25 L=77 mm INTERNAL COOLANT FOR DOOSAN DAEWOO
STRAIGHT ER25 77 mm CW-CW
1:1		 STRAIGHT INTERNAL COOLANT THROUGH STRAIGHT
THS006577 BMT65 BOLT PATTERN 70x73 AXIAL DRILLING MILLING HEAD ER25 FOR DAEWOO

THS006603 BMT85 BOLT PATTERN 100x100 DIN1809 AXIAL DRILLING MILLING HEAD ER40 FOR DAEWOO

THS006604 BMT85 BOLT PATTERN 100x100 DIN1809 AXIAL DRILLING MILLING HEAD ER50 FOR DAEWOO

THS006605 BMT85 BOLT PATTERN 100x100 DIN1809 AXIAL DRILLING MILLING HEAD ER50 CTS FOR DAEWOO

THS007306 BMT65 BOLT PATTERN 70x73 AXIAL DRILLING MILLING HEAD ER32 L=120 mm FOR DAEWOO

THS012058 BMT55 DIN1809 AXIAL DRILLING MILLING HEAD ER32 INTERNAL COOLANT FOR DOOSAN DAEWOO

THS016684 BMT65 BOLT PATTERN 70x73 AXIAL DRILLING MILLING HEAD ER25 COOLANT THROUGH FOR DAEWOO

THS016693 BMT65 BOLT PATTERN 70x73 AXIAL DRILLING MILLING HEAD ER32 L=100 mm INT CLNT FOR DAEWOO

THS016780 BMT75 DIN1809 AXIAL DRILLING MILLING HEAD ER40A INTERNAL COOLANT

THS016837 BMT75 DIN1809 AXIAL DRILLING MILLING HEAD ER40A


Updated 202311

Tool holder machine interface: RADIAL (STAR TYPE) turret, BMT-75, DIN1809, ANY

COMPATIBLE LATHES

DAEWOO PUMA PA-350M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DAEWOO PUMA-400M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DAEWOO PUMA PA-350LM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   HYUNDAI L-400MA TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   HWACHEON HI-TECH-550 TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DOOSAN INFRACORE PUMA-400 TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DOOSAN INFRACORE PUMA-400LM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DOOSAN INFRACORE PUMA-400M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DOOSAN INFRACORE PUMA-400XLM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DOOSAN INFRACORE PUMA-480LM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DOOSAN INFRACORE PUMA-480M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DOOSAN INFRACORE PUMA-480XLM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DOOSAN INFRACORE VT-750M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DOOSAN INFRACORE VT-750-2SP TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DOOSAN INFRACORE VT-750TM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   HYUNDAI SKT-V80M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   HYUNDAI L-400LMA TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   HYUNDAI SKT-400M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   HYUNDAI LV-500LM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   HYUNDAI LV-500RM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   LEADWELL LTC-45D BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   NAKAMURA SC-450M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   ROMI G-550M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   SAMSUNG SL-45MC TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   SAMSUNG SL-V80M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   LEADWELL LTC-50M TURRET RADIAL EWS BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   LEADWELL LTC-60M TURRET EWS RADIAL BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   LEADWELL LTC-60CXXLY BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS;   LEADWELL LTC-60CXLM TURRET EWS BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   LEADWELL LTC-35M TURRET EWS RADIAL BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   LEADWELL LTC-45M BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   YOU JI YH-36+C-75 BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS;   NAKAMURA STS-40 TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   HWACHEON HI-TECH-550B TURRET RADIAL (STAR TYPE), BMT BOLT PATTERN 90x90 BMT75, STATIC, ;   HWACHEON HI-TECH-550MC TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   HWACHEON VT-650M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   HWACHEON VT-650RMC TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ANY;   JOHNFORD SL-80L TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   JOHNFORD ST-40A TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   JOHNFORD SL-100L TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   JOHNFORD SL-70L TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   JOHNFORD SL-120L TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   JOHNFORD ST-70C TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   JOHNFORD ST-40B TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   JOHNFORD ST-60A TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   JOHNFORD ST-70A TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   JOHNFORD ST-60C TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   JOHNFORD ST-60B TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   JOHNFORD ST-40C TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   JOHNFORD ST-70B TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   JOHNFORD ST-240B TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   JOHNFORD ST-100B TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   JOHNFORD ST-160B TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   JOHNFORD ST-80B TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   JOHNFORD ST-130B TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   JOHNFORD ST-200B TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   SAMSUNG PL-45MC TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   TONGTAI THL-620M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   TONGTAI THL-620LM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   TONGTAI THL-620LMX TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   KIA SUPER KIA TURN SKT-V5LM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   KIA SUPER KIA TURN SKT-V80M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   KIA SUPER KIA TURN SKT-400M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DAEWOO PUMA-480LM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   LEADWELL LTC-35MY TURRET EWS RADIAL BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS;   LEADWELL LTC-50MY TURRET RADIAL DUPLOMATIC BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS;   LEADWELL LTC-60MY TURRET DUPLOMATIC RADIAL BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS;   DAEWOO PUMA-480XLM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DAEWOO PUMA-480M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DAEWOO PUMA VT-750TM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   WIA L-400MA TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   HYUNDAI SKT-V80RM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   HYUNDAI SKT-V80LM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   WIA LV-500RM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   WIA LV-500LM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   WIA LV-800RM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   WIA LV-800LM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DOOSAN INFRACORE PUMA-5100LY TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS;   DUPLOMATIC DM-TR25 TURRET BMT75 DIN1809 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   ALEX-TECH VT-40 TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DAEWOO PUMA-400LM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DAEWOO PUMA V-550 TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DMC DL-45M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DMC DL-55M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   HYUNDAI LV-800RM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   HYUNDAI LV-800LM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   WIA L-400LMA TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   NAKAMURA TW-30MMY 12-TLS TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS;   NAKAMURA TW-30M 12-TLS TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   NAKAMURA TW-30MM 12-TLS TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   NAKAMURA TMC-400M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   NAKAMURA STW-400 TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   NAKAMURA TW-30MY 12-TLS TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS;   NAKAMURA TW-30MMYY 12-TLS TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS;   MTRENT MTCUT T-36FLMC TURRET RADIAL BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   MTRENT MTCUT T-36FMC TURRET RADIAL BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DOOSAN PUMA-400C TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ANY;   HYUNDAI LV-450RM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   HYUNDAI LV-450LM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   SAMSUNG SL-45BB TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   SAMSUNG SL-45LY TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DOOSAN PUMA-400MB TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT BOLT PATTERN 90x90 BMT75, STATIC, ;   LEADWELL LTC-35Y TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS;   LEADWELL LTC-35LY TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS;   LEADWELL LTC-35XLY TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS;   LEADWELL LTC-35XXLY TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS;   LEADWELL LTC-35LVY TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS;   SAMSUNG SL45MC-2200BB Mill-Turn TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ANY;   SAMSUNG SL-4500CLM TURRET RADIAL (STAR TYPE), BMT BOLT PATTERN 90x90 BMT75, STATIC, ANY;   ALEX-TECH VT-36 BLMC 3000 TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT BOLT PATTERN 90x90 BMT75, STATIC, ANY;   HYUNDAI L-400LMC TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ANY;   SMART NL-5000Y TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS;   SMART NL-5000LY TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS;
