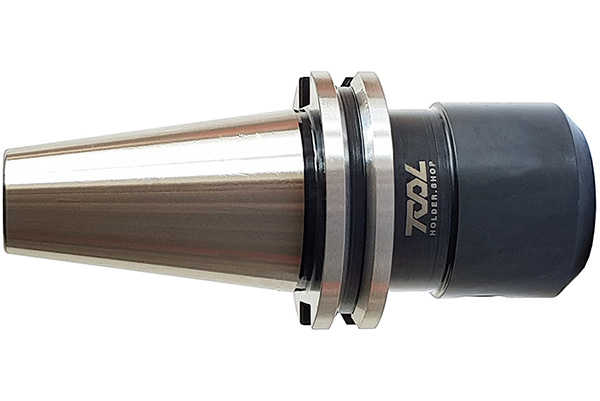

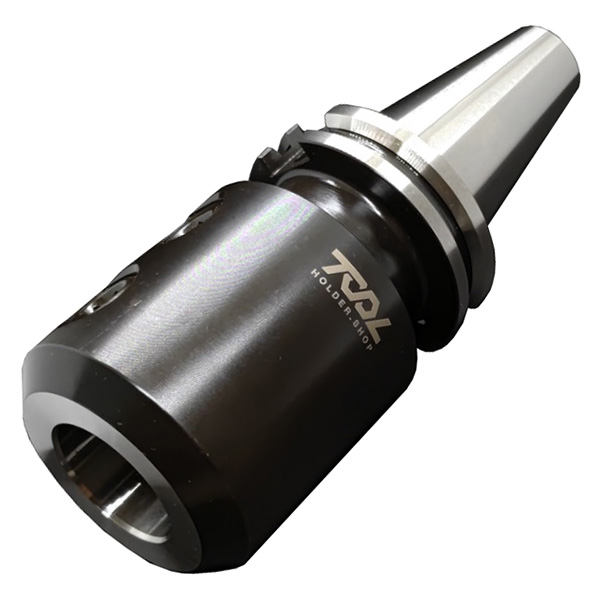

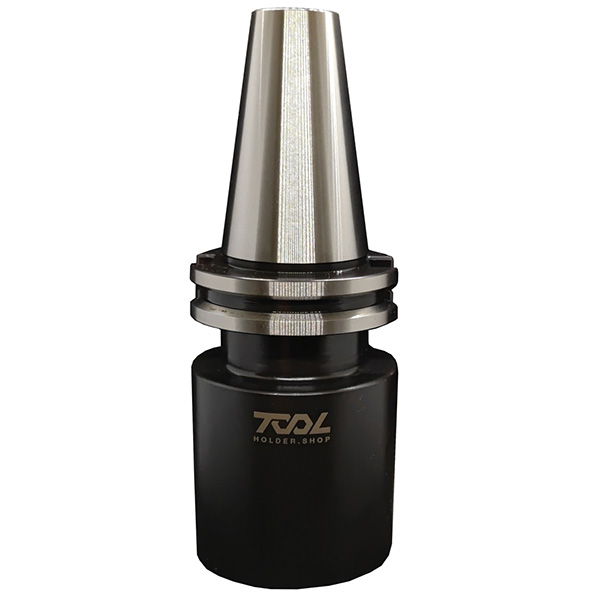

CAT40 SIDE LOCK END MILL HOLDER ID=32 mm L=(4.00)"
THS006103
$ USD
23200
In stock 1
23200
In stock 1

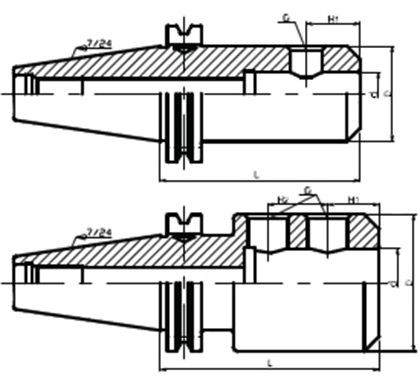

| SKU | FIG | L | Ø d | Ø D | H1 | H2 | G | Weight |
| THS006059 | 1 | 2.5" | 8 | 28 | 18 | M8x1.0 | 1.0 | |
| THS006060 | 10 | 35 | 20 | M10x1.0 | 1.1 | |||
| THS006058 | 1.5" | 3/4" | -- | -- | M12x1.5 | 1.2 | ||
| THS001656 | 3" | 3/4" | -- | -- | M12x1.5 | 1.2 | ||
| THS006061 | 2.62'' | 12 | 42 | 22.5 | M12x1.5 | 1.2 | ||
| THS006081 | 2.75'' | 16 | 48 | 24 | M14x1.5 | 1.3 | ||
| THS006101 | 3.5'' | 20 | 48 | 25 | M16x1.5 | 1.7 | ||
| THS006102 | 2 | 4'' | 25 | 62 | 24 | 25 | M18x2.0 | 2.3 |
| THS006103 | 32 | 63 | 28 | M20x2.0 | 2.1 | |||
| THS006136 | 1 | 2.5'' | 8 | 28 | 19 | M8x1.0 | 3.1 | |
| THS006137 | 10 | 35 | 20 | M10x1.0 | 2.9 | |||
| THS006138 | 2.62'' | 12 | 42 | 22.5 | M12x1.5 | 3.2 | ||
| THS006139 | 2.75'' | 16 | 48 | 24 | M14x1.5 | 3.4 | ||
| THS006141 | 3.5'' | 20 | 52 | 25 | M16x1.5 | 3.6 | ||
| THS006142 | 2 | 4'' | 25 | 65 | 24 | 25 | M18x2.0 | 4.2 |
| THS006143 | 32 | 72 | 28 | M20x2.0 | 4.4 | |||
| THS006144 | 4.7'' | 40 | 90 | 30 | 32 | 5.3 |
Updated 2022-02-23
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS000918 CAT40 SIDE LOCK END MILL HOLDER ID=( 1/ 2)" L=( 3)" | ||||||
| STRAIGHT | ( 1/ 2)" | ( 3)" |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS000919 CAT40 SIDE LOCK END MILL HOLDER ID=( 5/ 8)" L=( 3)" | ||||||
| STRAIGHT | ( 5/ 8)" | ( 3)" |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS000994 CAT40 SIDE LOCK END MILL HOLDER ID=( 1/ 2)" L=( 2- 5/ 8)" | ||||||
| STRAIGHT | ( 1/ 2)" | ( 2- 5/ 8)" |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS000995 CAT40 SIDE LOCK END MILL HOLDER ID=( 5/ 8)" L=( 3- 3/ 4)" | ||||||
| STRAIGHT | ( 5/ 8)" | ( 3- 3/ 4)" |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001650 CAT40 SIDE LOCK END MILL HOLDER ID=( 3/16)" L=( 2- 1/ 2)" | ||||||
| STRAIGHT | ( 3/16)" | ( 2- 1/ 2)" |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001651 CAT40 SIDE LOCK END MILL HOLDER ID=( 1)" L=( 4)" | ||||||
| STRAIGHT | ( 1)" | ( 4)" |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001652 CAT40 SIDE LOCK END MILL HOLDER ID=( 1/ 8)" L=( 2- 3/ 8)" | ||||||
| STRAIGHT | ( 1/ 8)" | ( 2- 3/ 8)" |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001656 CAT40 SIDE LOCK END MILL HOLDER ID=( 3/ 4)" L=( 3)" | ||||||
| STRAIGHT | ( 3/ 4)" | ( 3)" |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001657 CAT40 SIDE LOCK END MILL HOLDER ID=( 3/ 8)" L=( 2- 1/ 2)" | ||||||
| STRAIGHT | ( 3/ 8)" | ( 2- 1/ 2)" |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001658 CAT40 SIDE LOCK END MILL HOLDER ID=( 1- 1/ 2)" L=( 4- 1/ 2)" | ||||||
| STRAIGHT | ( 1- 1/ 2)" | ( 4- 1/ 2)" |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001659 CAT40 SIDE LOCK END MILL HOLDER ID=( 1- 1/ 4)" L=( 4)" | ||||||
| STRAIGHT | ( 1- 1/ 4)" | ( 4)" |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001662 CAT40 SIDE LOCK END MILL HOLDER ID=( 1/ 4)" L=( 2- 1/ 2)" | ||||||
| STRAIGHT | ( 1/ 4)" | ( 2- 1/ 2)" |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001666 CAT40 SIDE LOCK END MILL HOLDER ID=( 5/16)" L=( 2- 1/ 2)" | ||||||
| STRAIGHT | ( 5/16)" | ( 2- 1/ 2)" |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001736 CAT50 SIDE LOCK END MILL HOLDER ID=( 7/16)" L=( 3)" | ||||||
| STRAIGHT | ( 7/16)" | ( 3)" |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001741 CAT40 SIDE LOCK END MILL HOLDER ID=( 7/16)" L=( 3)" | ||||||
| STRAIGHT | ( 7/16)" | ( 3)" |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001742 CAT40 SIDE LOCK END MILL HOLDER ID=( 7/ 8)" L=( 3- 1/ 2)" | ||||||
| STRAIGHT | ( 7/ 8)" | ( 3- 1/ 2)" |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001743 CAT50 SIDE LOCK END MILL HOLDER ID=( 1/ 4)" L=( 2- 1/ 2)" | ||||||
| STRAIGHT | ( 1/ 4)" | ( 2- 1/ 2)" |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001744 CAT50 SIDE LOCK END MILL HOLDER ID=( 3/ 8)" L=( 2- 1/ 2)" | ||||||
| STRAIGHT | ( 3/ 8)" | ( 2- 1/ 2)" |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001745 CAT50 SIDE LOCK END MILL HOLDER ID=( 5/16)" L=( 2- 1/ 2)" | ||||||
| STRAIGHT | ( 5/16)" | ( 2- 1/ 2)" |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001746 CAT50 SIDE LOCK END MILL HOLDER ID=( 1/ 2)" L=( 3)" | ||||||
| STRAIGHT | ( 1/ 2)" | ( 3)" |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001748 CAT50 SIDE LOCK END MILL HOLDER ID=( 3/ 4)" L=( 3)" | ||||||
| STRAIGHT | ( 3/ 4)" | ( 3)" |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001749 CAT50 SIDE LOCK END MILL HOLDER ID=( 5/ 8)" L=( 3)" | ||||||
| STRAIGHT | ( 5/ 8)" | ( 3)" |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001750 CAT50 SIDE LOCK END MILL HOLDER ID=( 1)" L=( 4)" | ||||||
| STRAIGHT | ( 1)" | ( 4)" |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001751 CAT50 SIDE LOCK END MILL HOLDER ID=( 7/ 8)" L=( 4)" | ||||||
| STRAIGHT | ( 7/ 8)" | ( 4)" |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001752 CAT50 SIDE LOCK END MILL HOLDER ID=( 1- 1/ 2)" L=( 4- 1/ 2)" | ||||||
| STRAIGHT | ( 1- 1/ 2)" | ( 4- 1/ 2)" |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001753 CAT50 SIDE LOCK END MILL HOLDER ID=( 1- 1/ 4)" L=( 4)" | ||||||
| STRAIGHT | ( 1- 1/ 4)" | ( 4)" |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS005169 CAT40 SIDE LOCK END MILL ADAPTOR ID=25 mm L=100 mm THREAD 5/8-11 | ||||||
| STRAIGHT | 25 mm | 100 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS006058 CAT40 SIDE LOCK END MILL HOLDER ID=(3/4)" L=(1.5)" | ||||||
|
|
||||||
| THS006059 CAT40 SIDE LOCK END MILL HOLDER ID=08 mm L=(2.5)" | ||||||
|
|
||||||
| THS006060 CAT40 SIDE LOCK END MILL HOLDER ID=10 mm L=(2.5)" | ||||||
|
|
||||||
Updated 202505.11
Tool holder machine interface: CNC MILLING SPINDLE turret, CAT-40, TAPER, ANY
