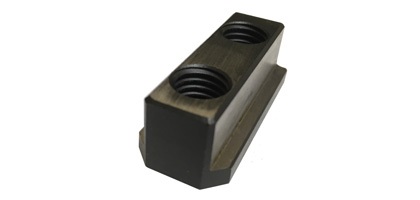

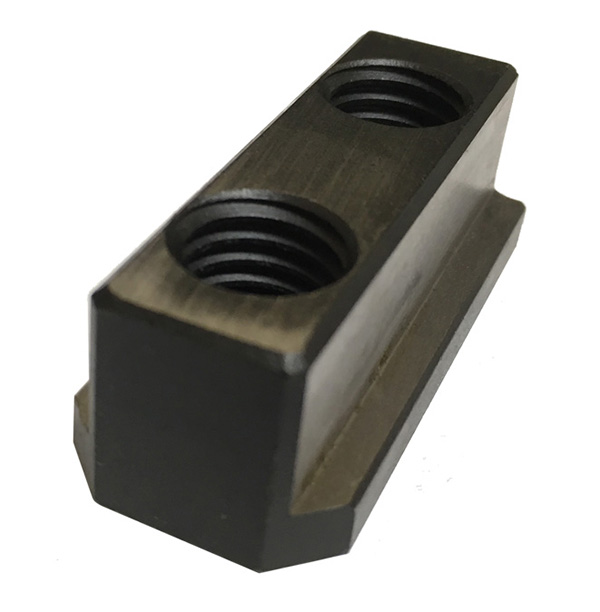

T-NUT FOR (10)" CHUCK N TYPE
THS015379

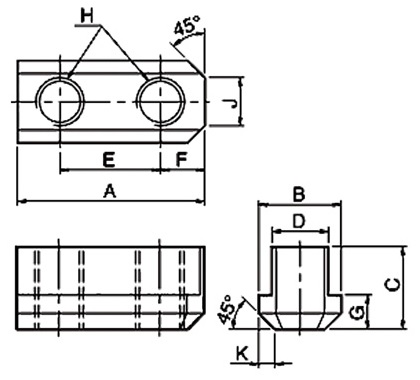

| SKU | A | B | C | D | E | F | G | H | J | K | Matching Chuck |
| SKP014344 | 26 | 14.5 | 15 | 10 | 14 | 6 | 5.5 | M8 | 5 | 2 | N-204, N-205 |
| SKP013994 | 36 | 17.5 | 18.5 | 12 | 20 | 8.2 | 7.5 | M10 | 8 | 2.5 | N-206, NB-306 |
| THS006803 | 46.5 | 20.5 | 20.5 | 14 | 25 | 10.5 | 8.5 | M12 | 12 | 4 | N-208, NB-208 |
| SKP011479 | 51 | 20.5 | 21.5 | 16 | 30 | 11 | 8.5 | M12 | 11 | 3 | N-210, NB-210 |
| THS001615 | 55.5 | 29.5 | 27.8 | 21 | 30 | 12 | 11.5 | M16 | 13 | 4.5 | N-212, NB-212 |
| SKP014356 | 36.5 | 17.5 | 22.5 | 12 | 20 | 7.5 | 7.5 | M10 | 6 | 3 | V-206, NHT-208 |
| SKP014357 | 48 | 20.5 | 25.5 | 14 | 25 | 11 | 9.5 | M12 | 8 | 4 | V-208 |
| SKP014358 | 55 | 22.5 | 25.5 | 16 | 30 | 11 | 9.5 | M12 | 8 | 4 | V-210 |
| SKP014359 | 55.5 | 26.5 | 33.5 | 18 | 30 | 11.5 | 13.5 | M14 | 12 | 5 | V-212 |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS001615 T-NUT FOR (12)" CHUCK N TYPE | ||||||
|
|
||||||
| THS006803 T-NUT FOR ( 8)" CHUCK N TYPE | ||||||
|
|
||||||
| THS015377 T-NUT FOR ( 5)" CHUCK N TYPE | ||||||
|
|
||||||
| THS015378 T-NUT FOR ( 6)" CHUCK N TYPE | ||||||
|
|
||||||
| THS015379 T-NUT FOR (10)" CHUCK N TYPE | ||||||
|
|
||||||
| THS015388 T-NUT FOR ( 6)" CHUCK V TYPE | ||||||
|
|
||||||
| THS015389 T-NUT FOR ( 8)" CHUCK V TYPE | ||||||
|
|
||||||
| THS015390 T-NUT FOR (10)" CHUCK V TYPE | ||||||
|
|
||||||
| THS015391 T-NUT FOR (12)" CHUCK V TYPE | ||||||
|
|
||||||
Updated 202409
